RGGM2004M0 UP20M

Артикул: RGGM2004M0 UP20M

В наличии

В корзину

Описание

Характеристики

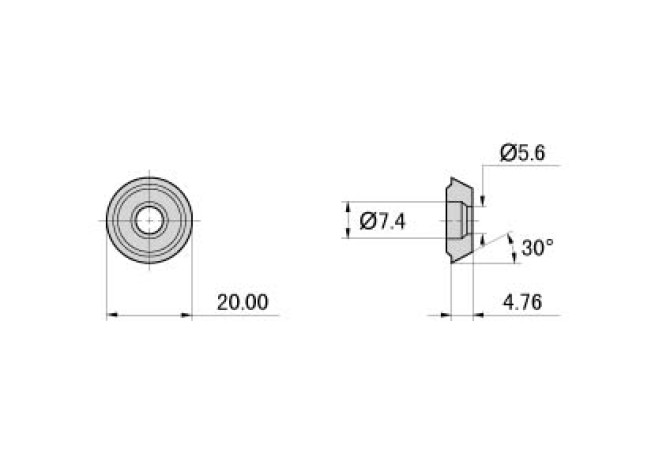

AN Clearance angle major

30 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiN-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.6 mm

Delivery state valid from

4/1/2022

DIN

RG2004M02N

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M20-M30

GRDMFG Grade manufacturers designation

UP20M

GRDPRIO Standard designation of the grade main application

HC-P20-P30

IC Inscribed circle diameter

20 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RG2004M02N

M M-dimension

20 mm

Materials

Name Identifying order number

RGGM2004M0 UP20M

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RGGM2004M0

TCINS Tolerance class insert

Working process

DDA - External turning
