RFMT 1905-LM-76 IC928

Артикул: 5602372

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-193322775090460

FamilyProducts

Round Milling Inserts

GRDMFG Grade manufacturers designation

IC928

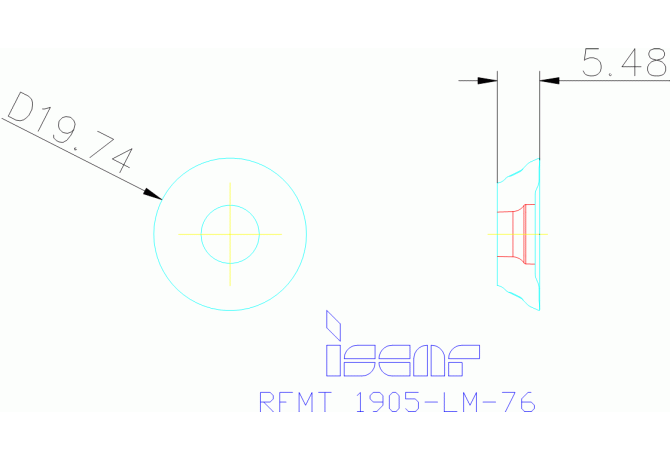

IC Inscribed circle diameter

19.74 mm

ID Technical product number

5602372

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$193322775090460

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

IS$$193322775090460

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-193322775090460

M M-dimension

19.74 mm

Name Identifying order number

RFMT 1905-LM-76 IC928

S Insert thickness

5.48 mm

Working process

No working processes available

WT Weight of item

0.01 kg
