RDMX07T1M0T UTi20T

Артикул: RDMX07T1M0T UTi20T

В наличии

В корзину

Описание

Характеристики

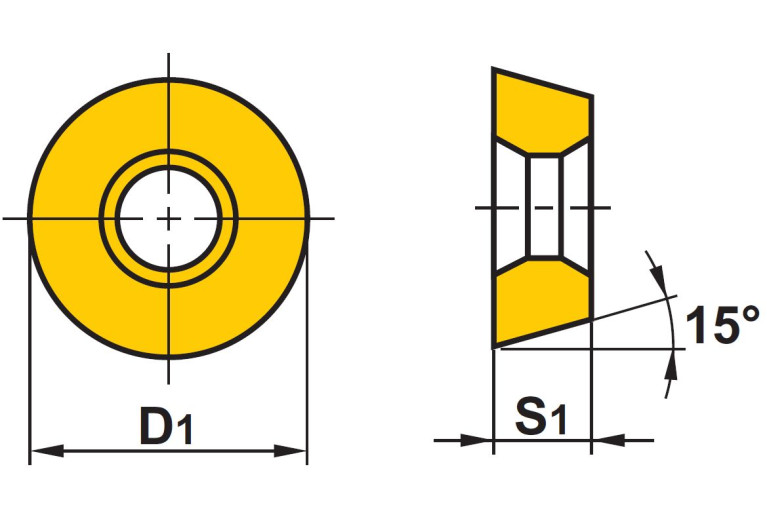

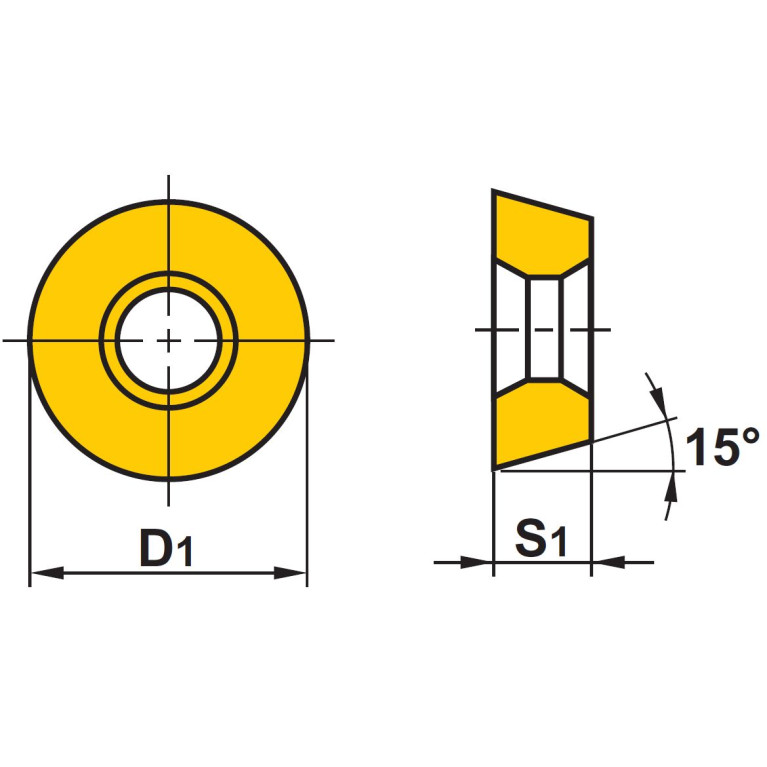

AN Clearance angle major

15 Degree

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

RD07T1M07N

FamilyProducts

round insert for milling, type RDMX M0T

GRD2ND Standard designation of the grade 2nd application

HW-P20

GRD3RD Standard designation of the grade 3rd application

HW-K30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

HW-M30

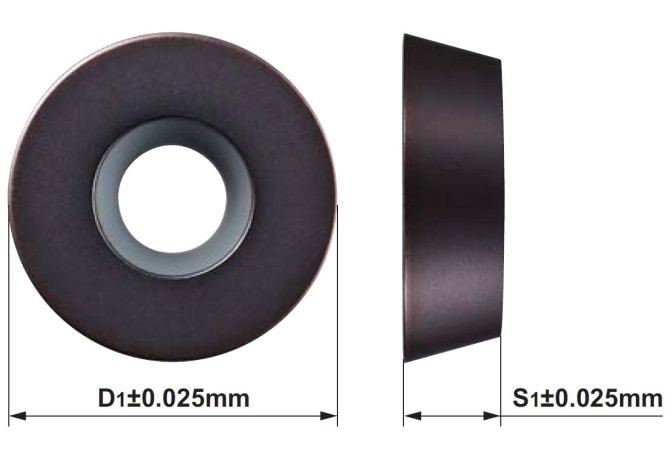

IC Inscribed circle diameter

7 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD07T1M07N

M M-dimension

7 mm

Name Identifying order number

RDMX07T1M0T UTi20T

S Insert thickness

1.98 mm

S1 Insert thickness total

1.98 mm

STDDES Standard designation

RDMX07T1M0T

STDDESAnsi Standard designation ANSI

RDMX2.51.2VT

TCINS Tolerance class insert

Working process

No working processes available
