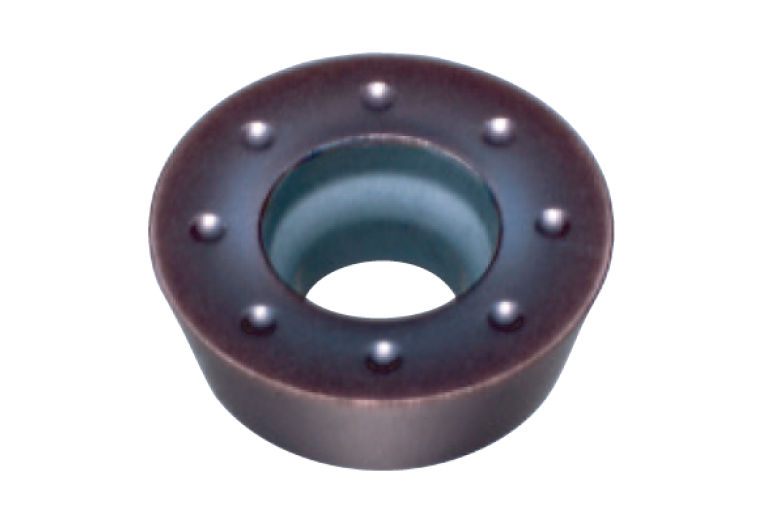

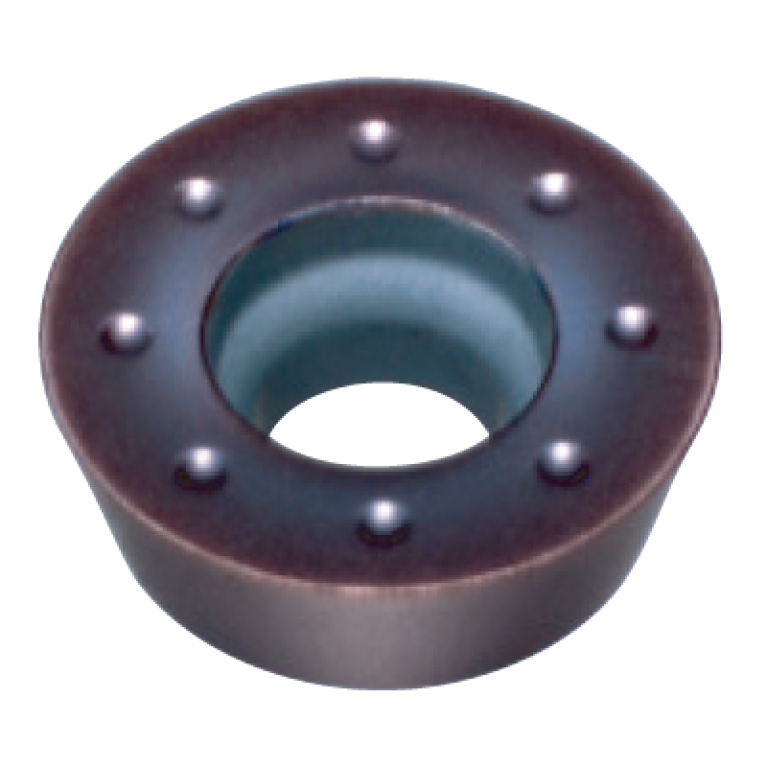

RDMW0724M0E VP15TF

Артикул: 458484

В наличии

В корзину

Описание

Характеристики

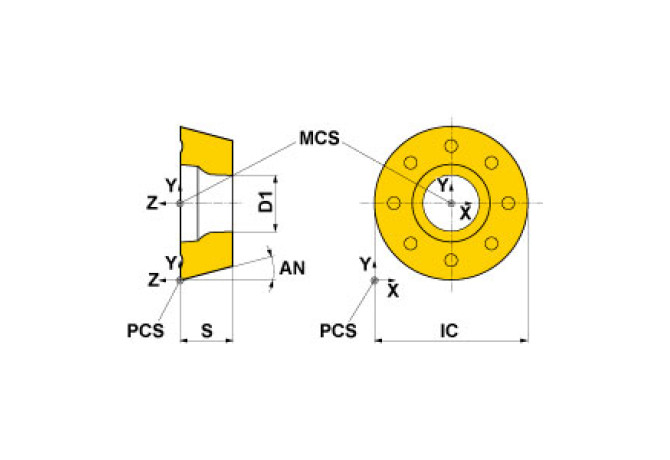

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

(Al,Ti)N

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.57 mm

Delivery state valid from

10/31/2004

FamilyProducts

insert for ARX

GRDMFG Grade manufacturers designation

VP15TF

IC Inscribed circle diameter

7 mm

ID Technical product number

458484

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

MI$$RD0724M03NA$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

MI$$RD0724M03NA$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

RDMW0724M0E VP15TF

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

RDMW0724M0E

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
