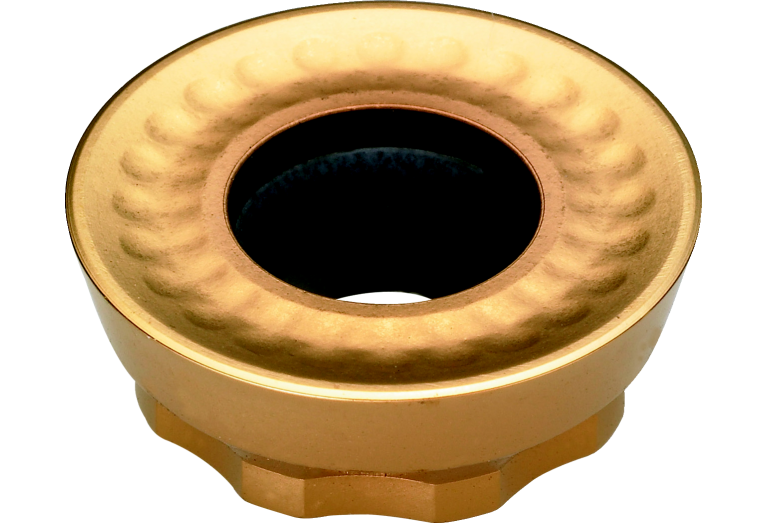

RDKT1605M0-MM PC3600

Артикул: 1-02-048710

В наличии

В корзину

Описание

Характеристики

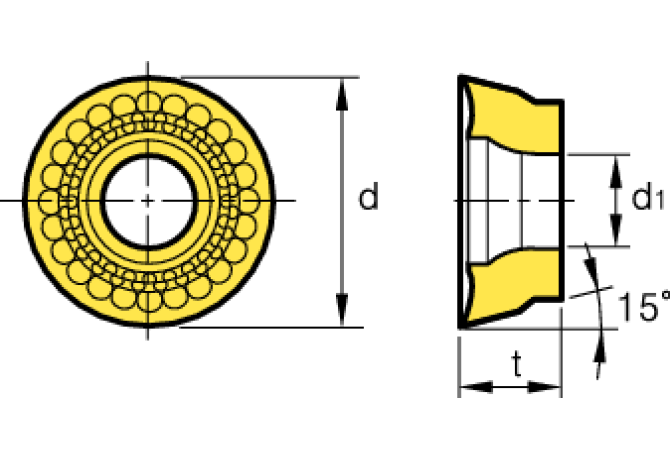

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/4/2014

DIN

RD1605M03N

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

PC3600

IC Inscribed circle diameter

16 mm

ID Technical product number

1-02-048710

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD1605M03N

M M-dimension

16 mm

Name Identifying order number

RDKT1605M0-MM PC3600

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

RDKT1605M0

TCINS Tolerance class insert

K - Cold formed

Working process

F - Milling
