Главная Каталог продукции Toolunited 16 201-10 - Round insert RDHW0803M0E NC5330

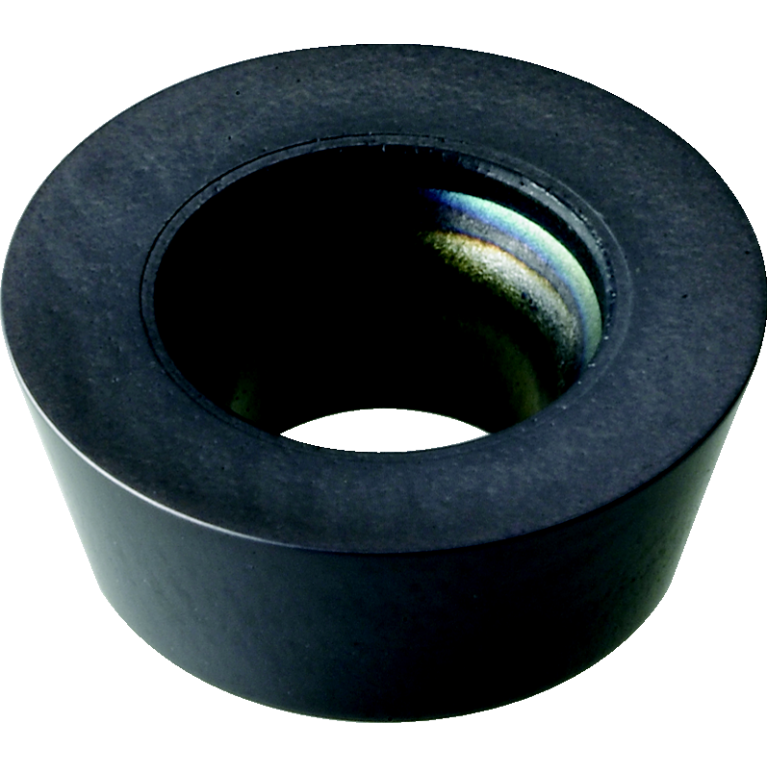

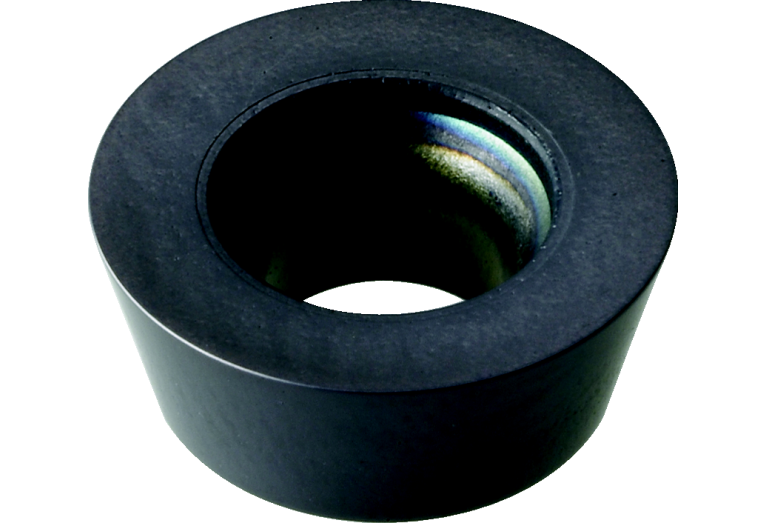

RDHW0803M0E NC5330

Артикул: 1-02-041529

В наличии

В корзину

Описание

Характеристики

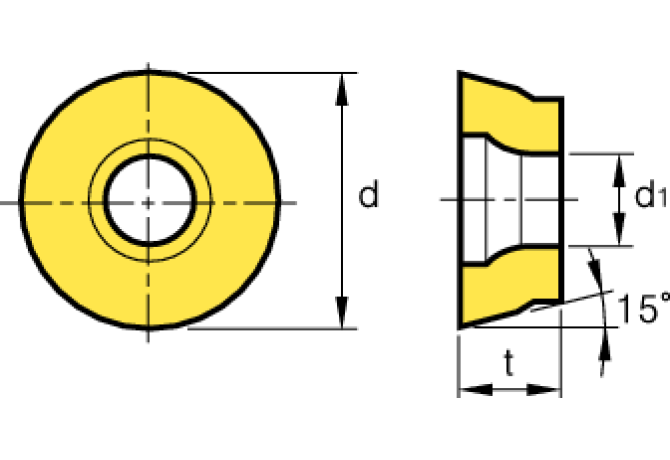

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

6/4/2014

DIN

RD0803M03N

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

NC5330

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

8 mm

ID Technical product number

1-02-041529

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD0803M03N

M M-dimension

8 mm

Name Identifying order number

RDHW0803M0E NC5330

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RDHW0803M0E

TCINS Tolerance class insert

Working process

F - Milling
