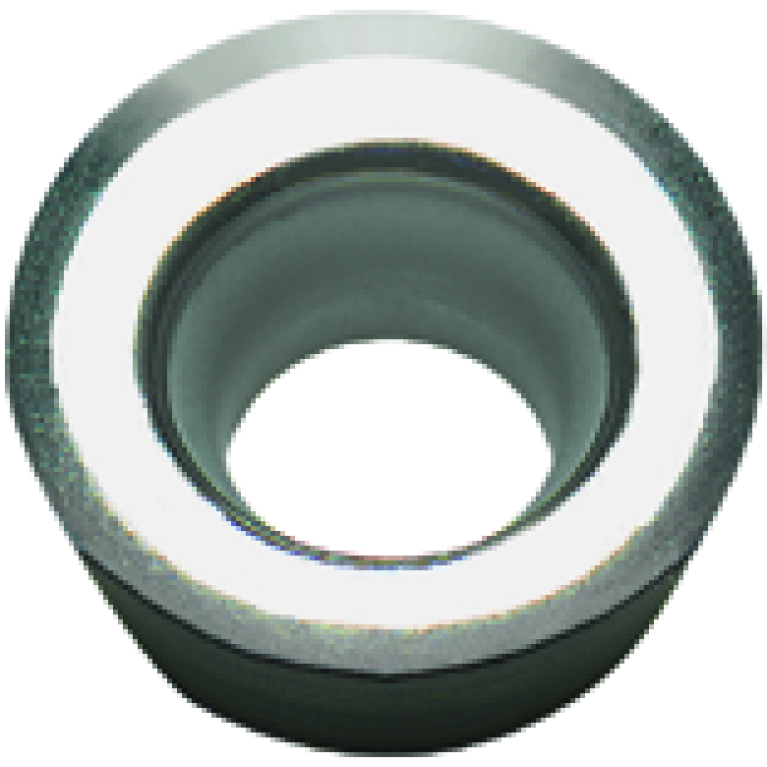

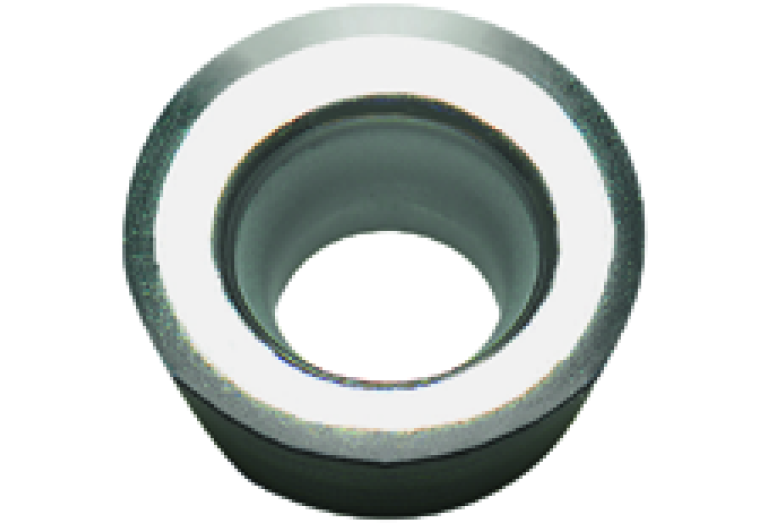

RDGX07T1M0-G85 WMG40

RDGX07T1M0-G85 WMG40

Walter
Артикул: 5004984
В наличии
В корзину
Характеристики

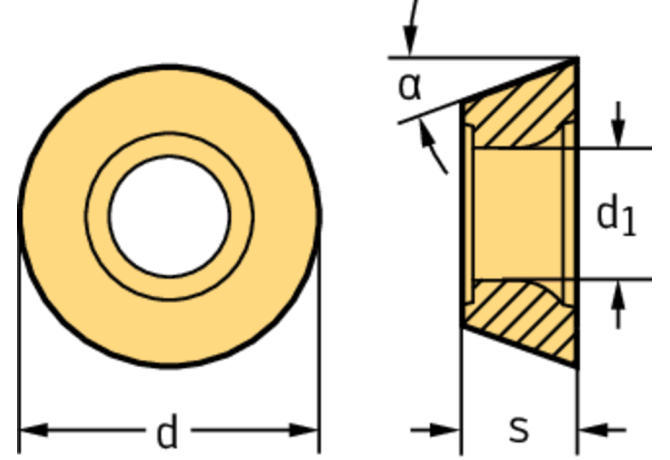

AN Clearance angle major
15 Degree
CBMD Chip breaker manufacturers designation
G85
COMPC Company code
W - Walter
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
12/1/2023
DIN
W-RD07T100
FamilyProducts
Positive round RDGX
GRDMFG Grade manufacturers designation
WMG40
IC Inscribed circle diameter
7 mm
ID Technical product number
5004984
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$RD07T1M03NB$$M0
ISYC Subclass
201-10 - Round insert
LOC-03 ISO
WR$$RD07T1M03NB$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-RD07T100
M M-dimension
7 mm
Name Identifying order number
RDGX07T1M0-G85 WMG40
S Insert thickness
1.98 mm
S1 Insert thickness total
1.98 mm
TCE Tipped cutting edge code
S
Working process
No working processes available
WT Weight of item
0.003 kg
