RCMX2507M0 UH6400

Артикул: RCMX2507M0 UH6400

В наличии

В корзину

Описание

Характеристики

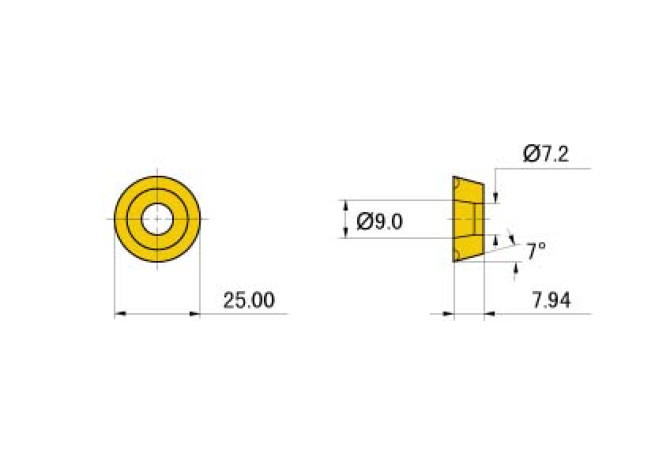

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.2 mm

Delivery state valid from

4/1/2022

DIN

RC2507M07N

FamilyProducts

insert for turning RCMX

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDMFG Grade manufacturers designation

UH6400

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

25 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2507M07N

M M-dimension

25 mm

Materials

Name Identifying order number

RCMX2507M0 UH6400

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

RCMX2507M0

STDDESAnsi Standard designation ANSI

RCMX85V

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
