RCMX1204M0 UC5115

Артикул: 361447

В наличии

В корзину

Описание

Характеристики

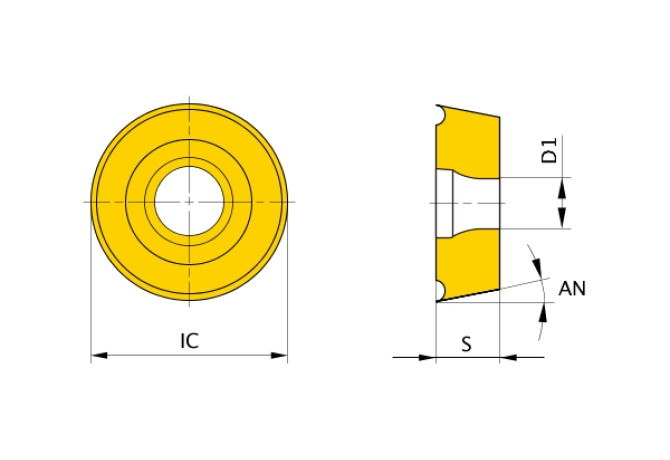

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

stand

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.2 mm

Delivery state valid from

4/1/2022

DIN

MI-RCMX1204M0

FamilyProducts

turning inserts

GRDMFG Grade manufacturers designation

UC5115

IC Inscribed circle diameter

12 mm

ID Technical product number

361447

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-RCMX1204M0

M M-dimension

12 mm

Materials

Name Identifying order number

RCMX1204M0 UC5115

NameAnsi Identifying order number inch alternative

RCMX1204M0

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
