Главная Каталог продукции Toolunited 16 201-10 - Round insert RCMX1003M0 US905

RCMX1003M0 US905

Артикул: RCMX1003M0 US905

В наличии

В корзину

Описание

Характеристики

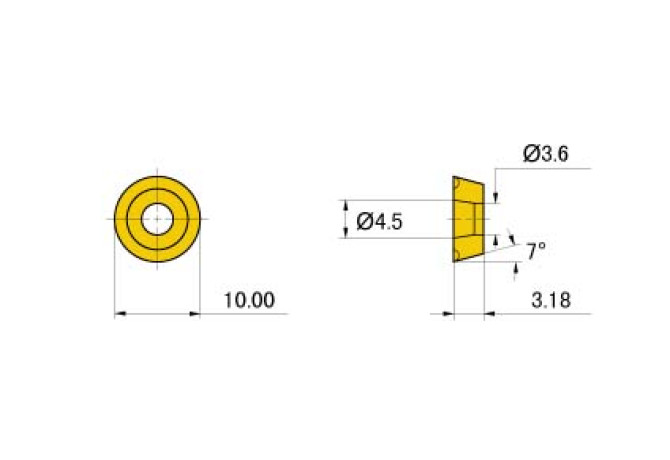

AN Clearance angle major

7 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.6 mm

Delivery state valid from

4/1/2022

DIN

RC1003M07N

FamilyProducts

insert for turning RCMX1003M0

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRDMFG Grade manufacturers designation

US905

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003M07N

M M-dimension

10 mm

Name Identifying order number

RCMX1003M0 US905

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMX1003M0

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning
