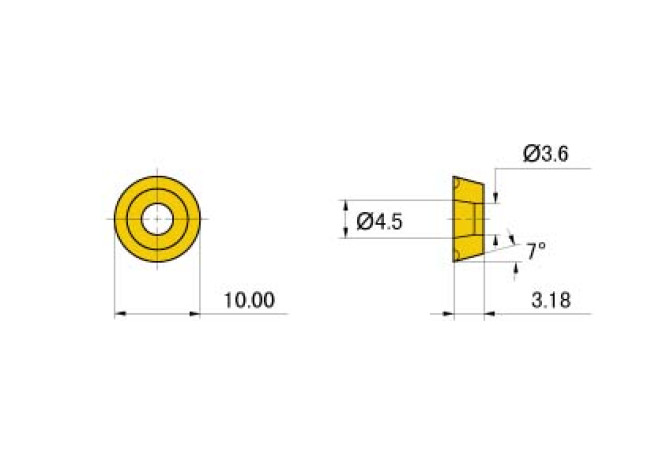

RCMX1003M0 UC6010

Артикул: RCMX1003M0 UC6010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.6 mm

Delivery state valid from

4/1/2022

DIN

RC1003M07N

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

15 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDMFG Grade manufacturers designation

UC6010

GRDPRIO Standard designation of the grade main application

HC-P10-P20

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003M07N

M M-dimension

10 mm

Materials

P,K

Name Identifying order number

RCMX1003M0 UC6010

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMX1003M0

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning
