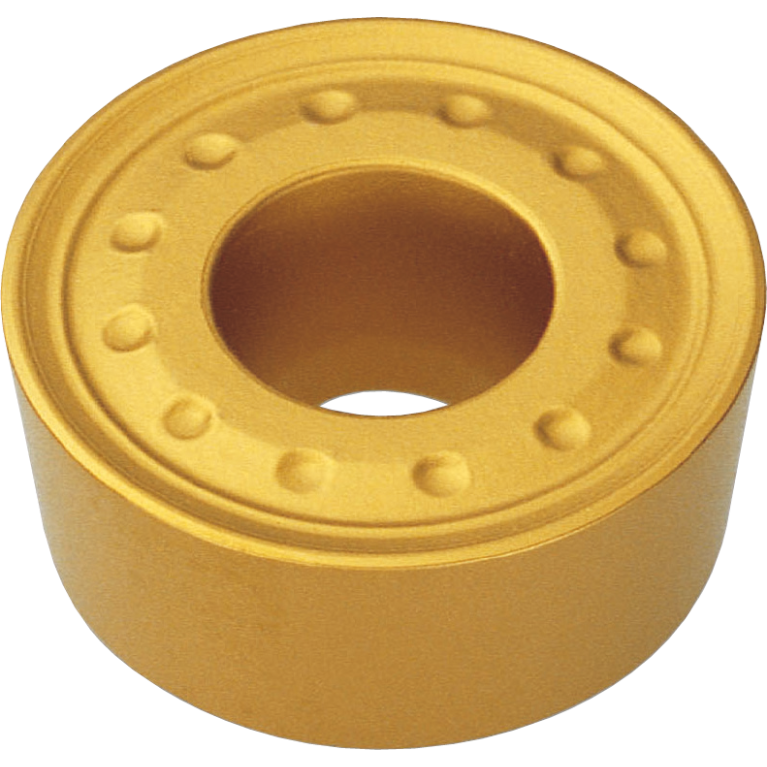

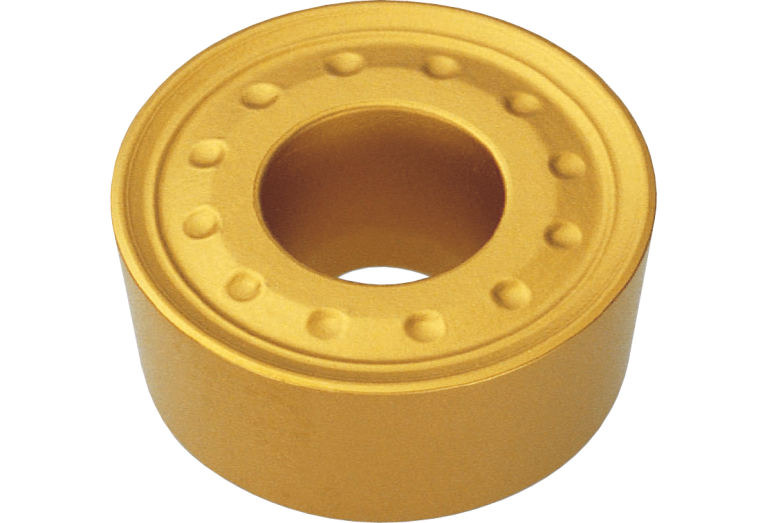

RCMX1003M0 NC3030

Артикул: 1-02-025766

В наличии

В корзину

Описание

Характеристики

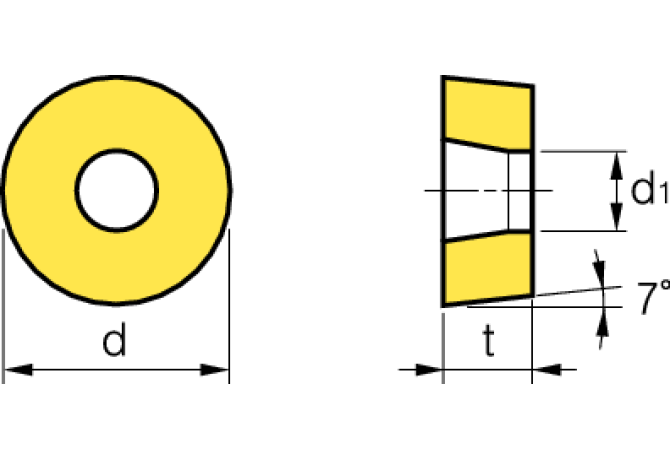

AN Clearance angle major

7 Degree

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

RC1003M07N

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

NC3030

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

10 mm

ID Technical product number

1-02-025766

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003M07N

M M-dimension

10 mm

Name Identifying order number

RCMX1003M0 NC3030

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMX1003M0

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0026 kg
