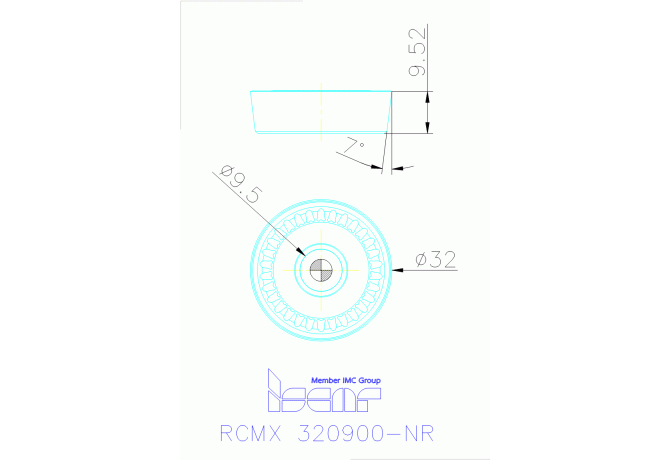

RCMX 320900-NR IC8250

Артикул: 5508021

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.5 mm

Delivery state valid from

12/1/2014

DIN

RC3209003N

FamilyProducts

RCMX 320900-NR IC8250

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

32 mm

ID Technical product number

5508021

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC3209003N

M M-dimension

32 mm

Materials

Name Identifying order number

RCMX 320900-NR IC8250

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

RCMX320900

TCINS Tolerance class insert

Working process

No working processes available
