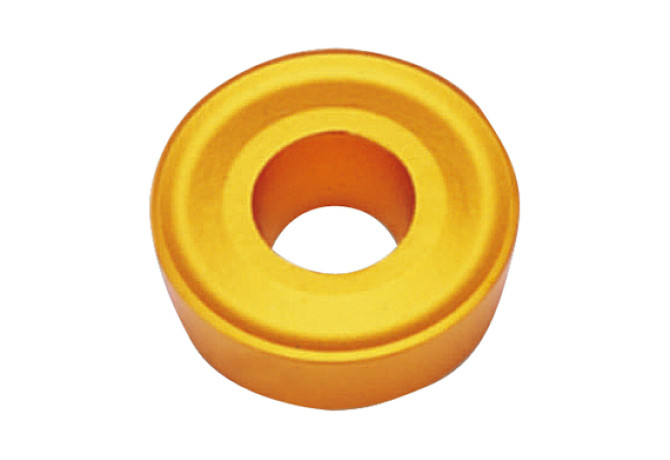

RCMX 120400 TT8125

Артикул: 5519609

В наличии

В корзину

Описание

Характеристики

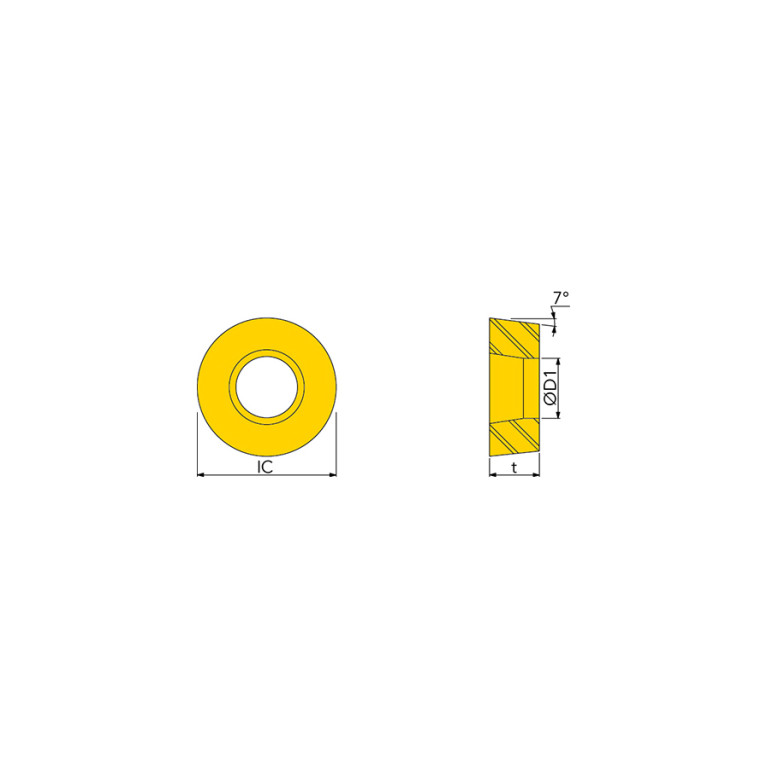

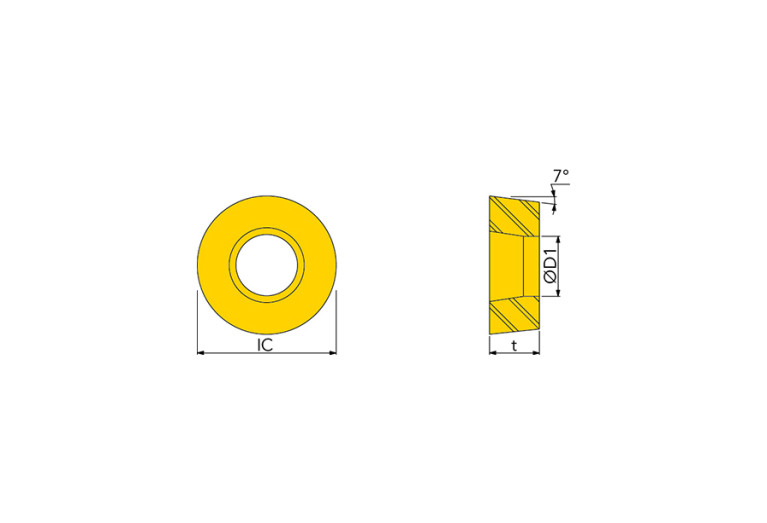

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.2 mm

Delivery state

LL - Stock limited

DIN

RC1204007N

FamilyProducts

insert, Positive 7° clearance round inserts for roughing

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12 mm

ID Technical product number

5519609

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204007N

M M-dimension

12 mm

Name Identifying order number

RCMX 120400 TT8125

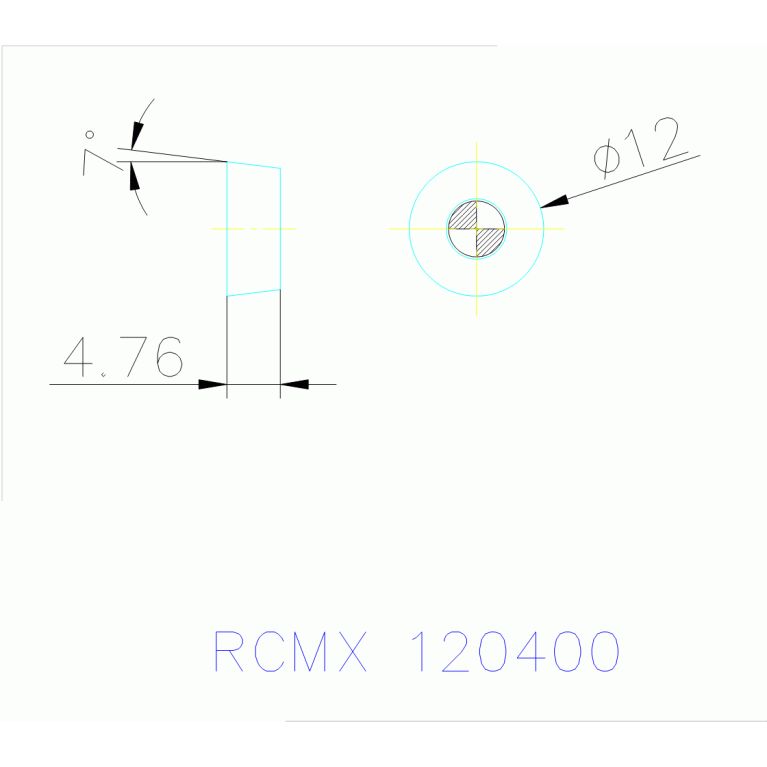

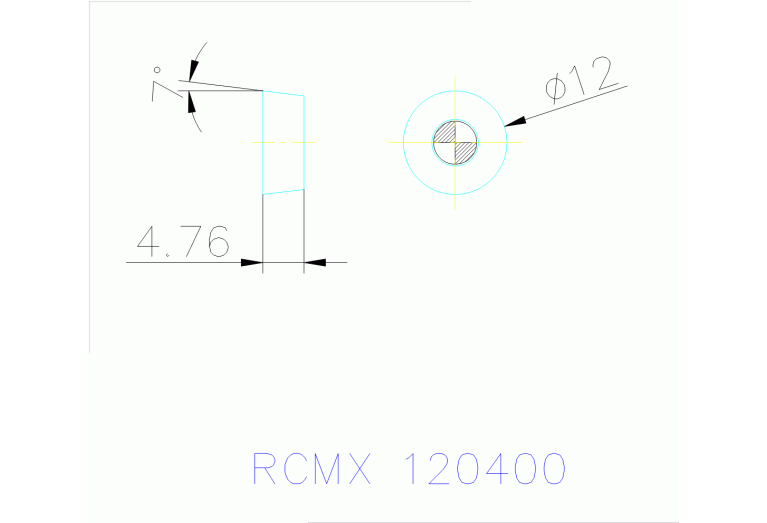

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCMX120400

STDDESAnsi Standard designation ANSI

RCMX430

TCINS Tolerance class insert

Working process

No working processes available
