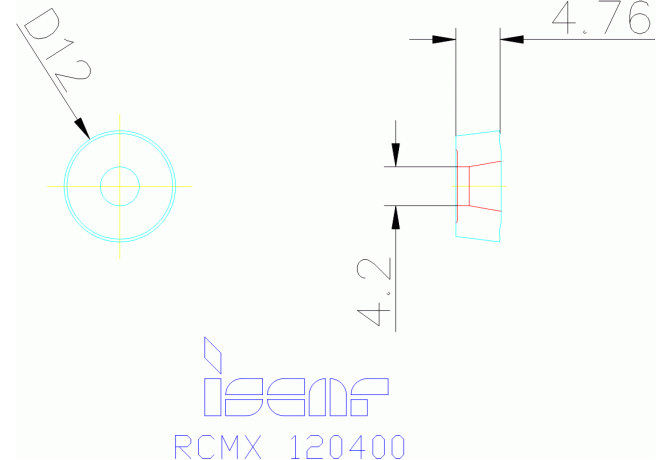

RCMX 120400 IC8150

Артикул: 5550398

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.2 mm

Delivery state valid from

2/1/2012

DIN

RC1204003N

FamilyProducts

RCMX 120400 IC8150

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8150

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12 mm

ID Technical product number

5550398

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M M-dimension

12 mm

Materials

P,K

Name Identifying order number

RCMX 120400 IC8150

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCMX120400

STDDESAnsi Standard designation ANSI

RCMX430

TCINS Tolerance class insert

Working process

No working processes available
