Главная Каталог продукции Toolunited 16 201-10 - Round insert RCMT2507M0 NRX AC700G

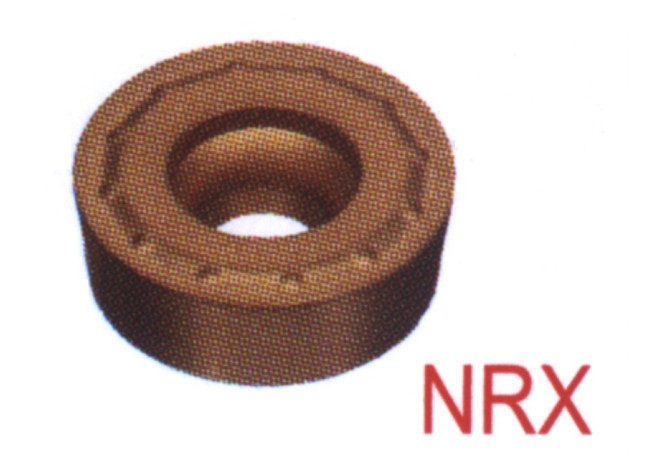

RCMT2507M0 NRX AC700G

Артикул: RCMT2507M0 NRX AC700G

В наличии

В корзину

Описание

Характеристики

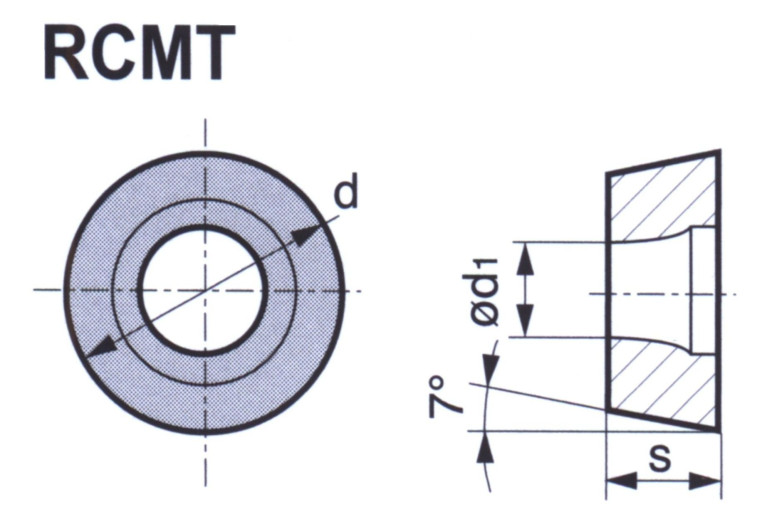

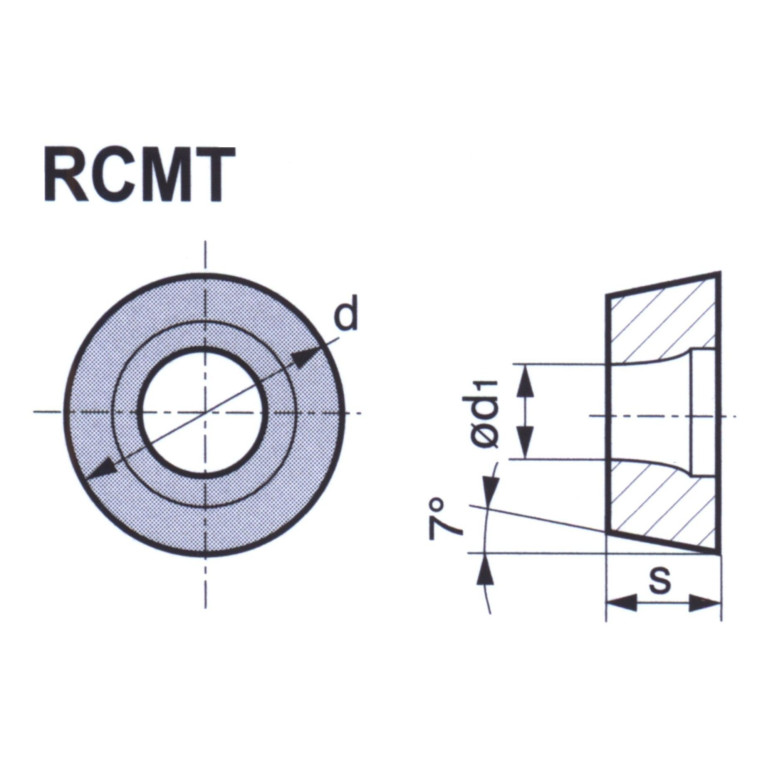

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NRX

COATN Coating / Покрытие

Al2O3

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.2 mm

Delivery state valid from

7/1/2021

DIN

RC2507M03N

FamilyProducts

indexable insert for roughing, RCMT type

GRDMFG Grade manufacturers designation

AC700G

IC Inscribed circle diameter

25 mm

ID Technical product number

RCMT2507M0 NRX AC700G

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2507M03N

M M-dimension

25 mm

Materials

P,K

Name Identifying order number

RCMT2507M0 NRX AC700G

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

RCMT2507M0

STDDESAnsi Standard designation ANSI

RCMT85V

Working process

No working processes available
