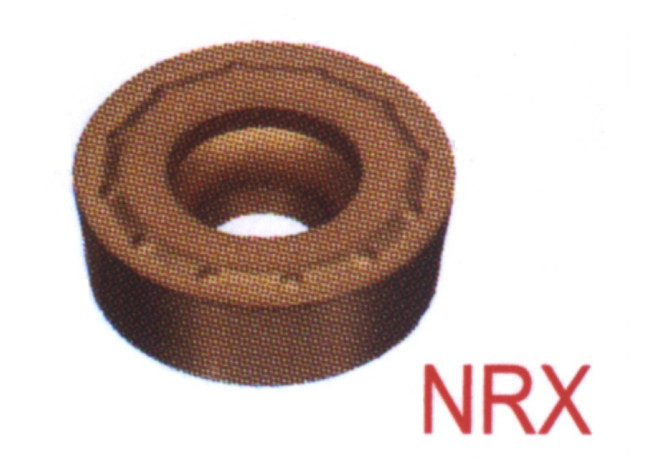

RCMT2006M0 NRX AC2000

Артикул: RCMT2006M0 NRX AC2000

В наличии

В корзину

Описание

Характеристики

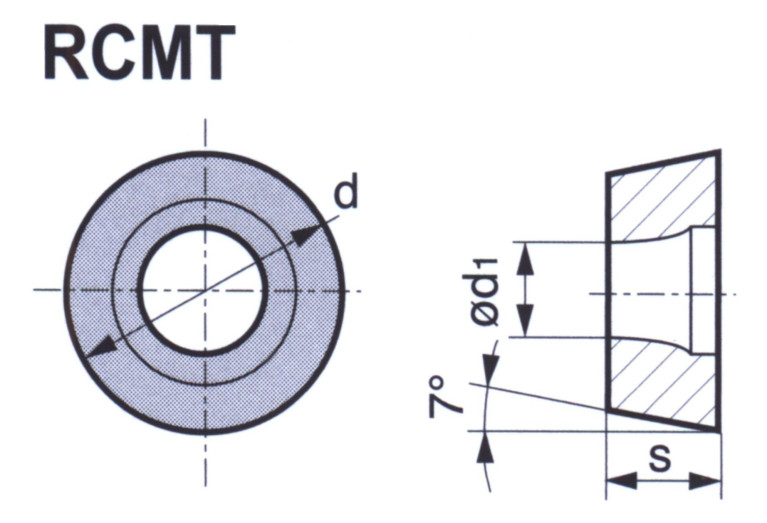

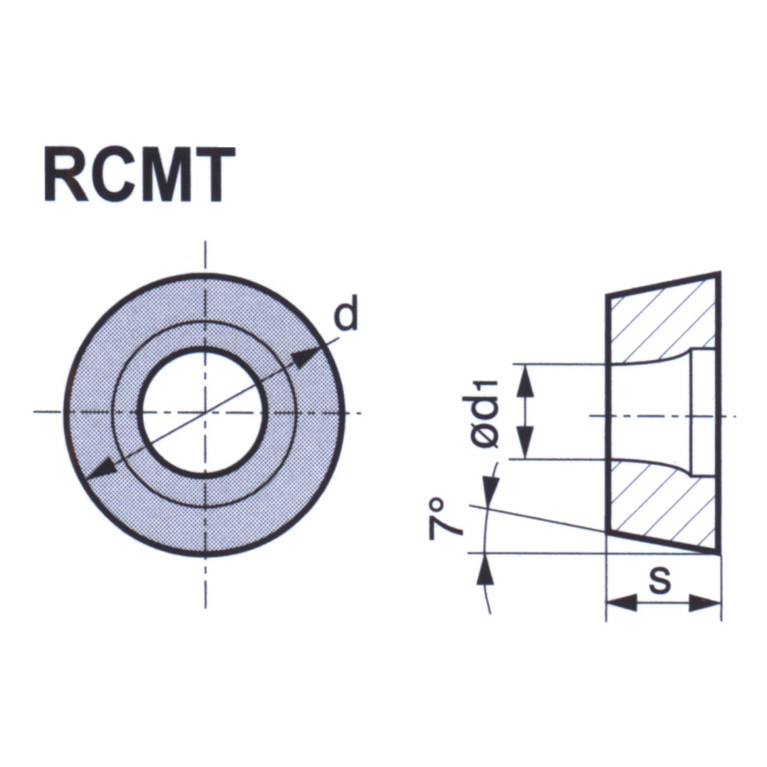

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NRX

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.5 mm

Delivery state valid from

7/1/2021

DIN

RC2006M03N

FamilyProducts

indexable insert for roughing, RCMT type

GRDMFG Grade manufacturers designation

AC2000

IC Inscribed circle diameter

20 mm

ID Technical product number

RCMT2006M0 NRX AC2000

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2006M03N

M M-dimension

20 mm

Materials

Name Identifying order number

RCMT2006M0 NRX AC2000

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RCMT2006M0

Working process

No working processes available
