Главная Каталог продукции Toolunited 16 201-10 - Round insert RCMT1204M0 NRX AC830P

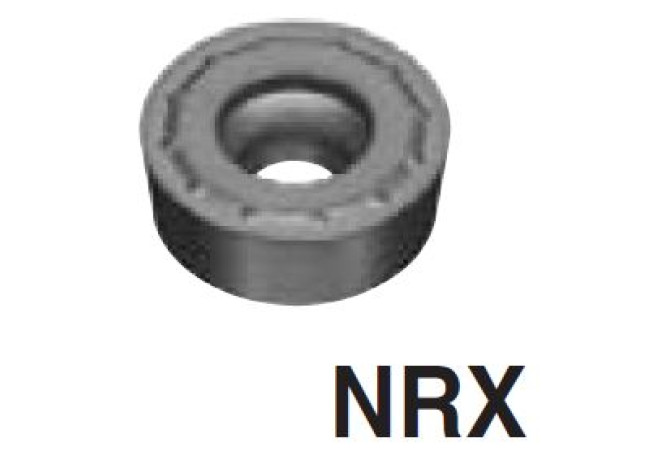

RCMT1204M0 NRX AC830P

Артикул: RCMT1204M0 NRX AC830P

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

SuperFF

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.201 mm

Delivery state valid from

7/1/2021

DIN

RC1204M03N

FamilyProducts

insert, solid carbide, RCMT-NRX

GRDMFG Grade manufacturers designation

AC830P

IC Inscribed circle diameter

11.99 mm

ID Technical product number

RCMT1204M0 NRX AC830P

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204M03N

M M-dimension

11.99 mm

Materials

P,M,K

Name Identifying order number

RCMT1204M0 NRX AC830P

S Insert thickness

4.762 mm

S1 Insert thickness total

4.762 mm

STDDES Standard designation

RCMT1204M0

STDDESAnsi Standard designation ANSI

RCMT43V

TCINS Tolerance class insert

Working process

No working processes available
