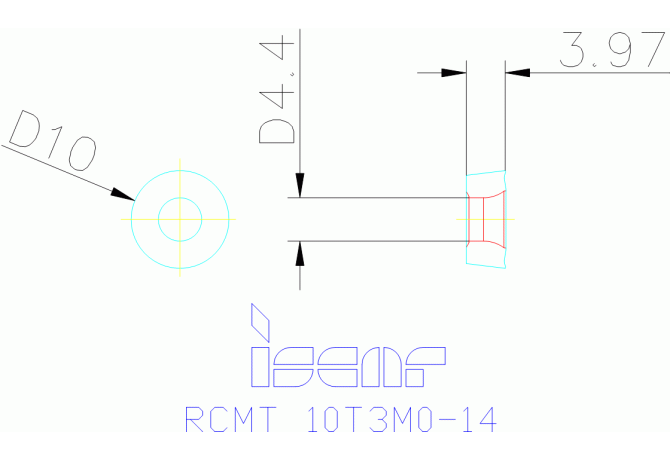

RCMT 10T3M0-14 IC8250

Артикул: 5508261

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2012

DIN

RC10T3M03N

FamilyProducts

RCMT 10T3M0-14 IC8250

GAN Insert rake angle

19 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

10 mm

ID Technical product number

5508261

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC10T3M03N

M M-dimension

10 mm

Materials

Name Identifying order number

RCMT 10T3M0-14 IC8250

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RCMT10T3M0

TCINS Tolerance class insert

Working process

No working processes available
