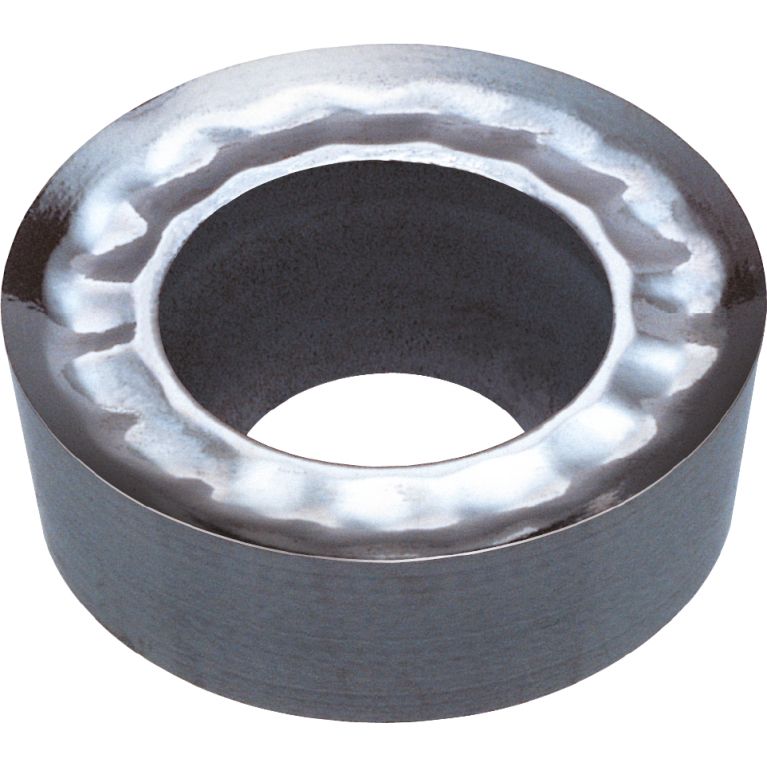

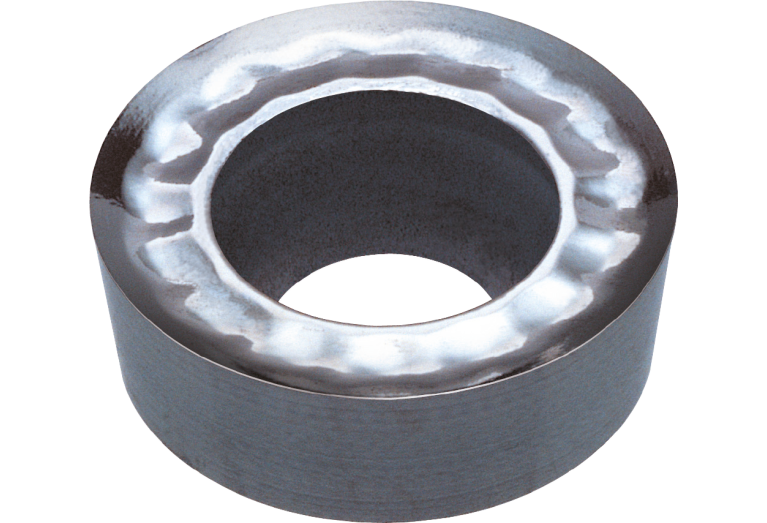

Главная Каталог продукции Toolunited 16 201-10 - Round insert RCGT1204M0-AK PC230

RCGT1204M0-AK PC230

Артикул: 1-02-012389

В наличии

В корзину

Описание

Характеристики

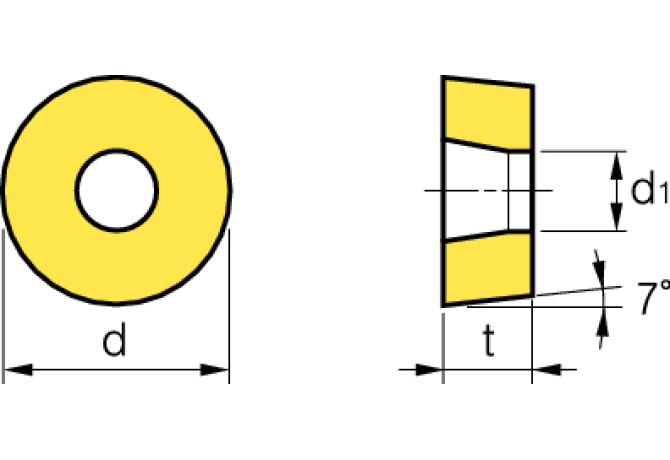

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/4/2014

DIN

RC1204M03N

FamilyProducts

Aluminum Insert (Positive)

GRDMFG Grade manufacturers designation

PC230

IC Inscribed circle diameter

12 mm

ID Technical product number

1-02-012389

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204M03N

M M-dimension

12 mm

Name Identifying order number

RCGT1204M0-AK PC230

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCGT1204M0

STDDESAnsi Standard designation ANSI

RCGT43V

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0056 kg
