Главная Каталог продукции Toolunited 16 201-10 - Round insert RCGT10T3M0-AR H01

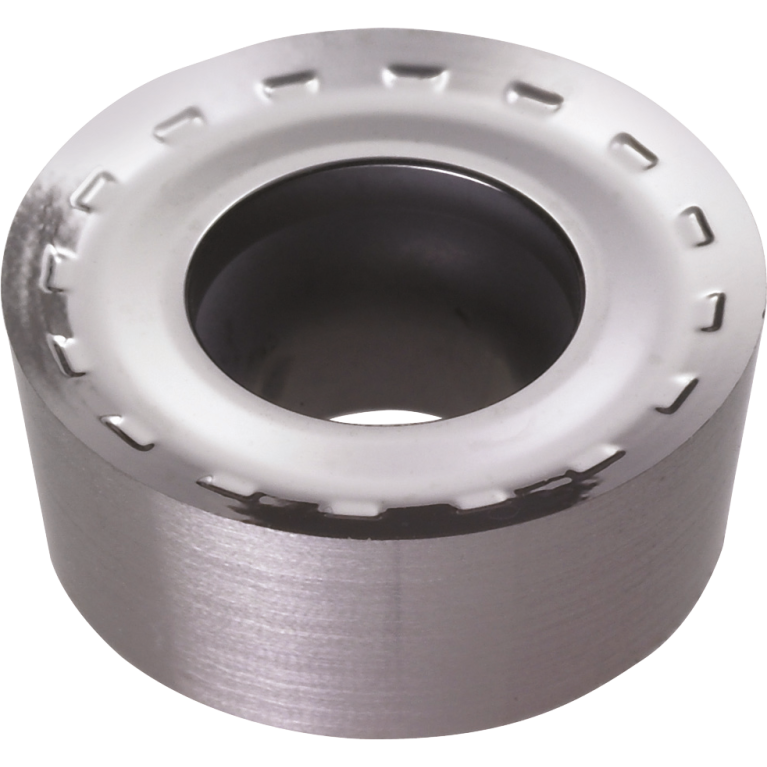

RCGT10T3M0-AR H01

Артикул: 1-03-014431

В наличии

В корзину

Описание

Характеристики

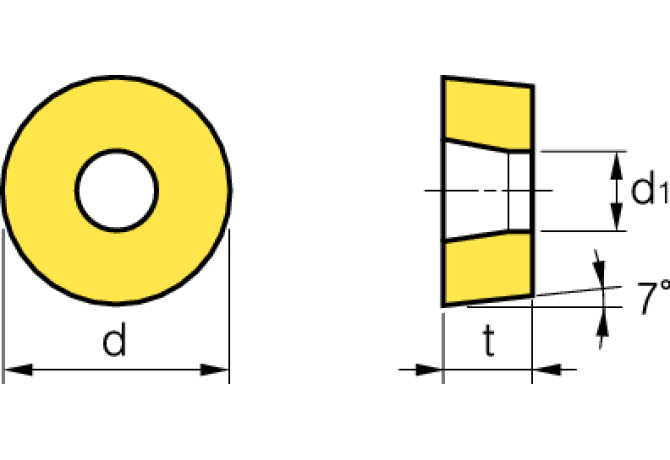

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/4/2014

DIN

RC10T3M03N

FamilyProducts

Aluminum Insert (Positive)

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

10 mm

ID Technical product number

1-03-014431

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC10T3M03N

M M-dimension

10 mm

Name Identifying order number

RCGT10T3M0-AR H01

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RCGT10T3M0

TCINS Tolerance class insert

Working process

No working processes available
