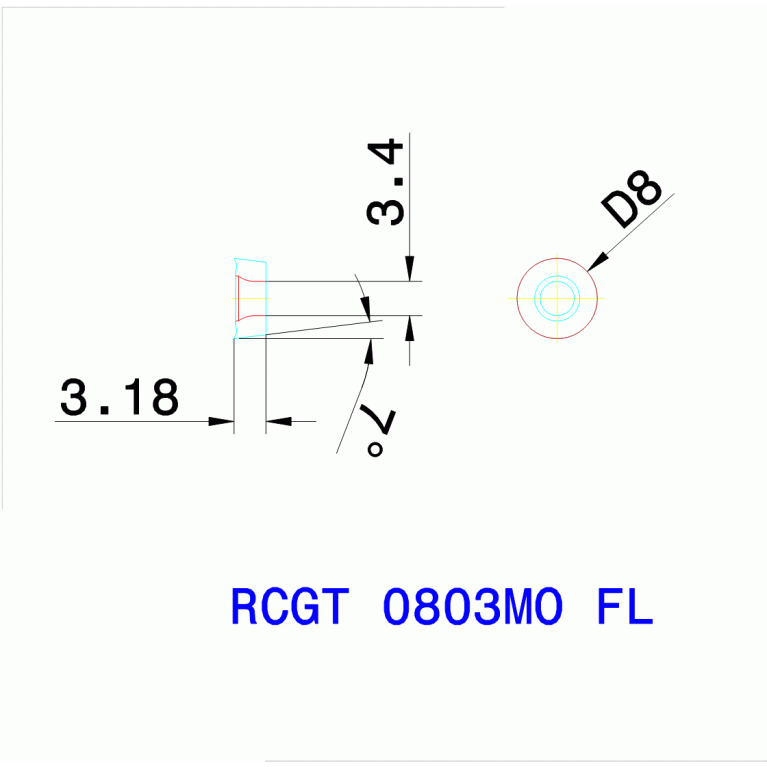

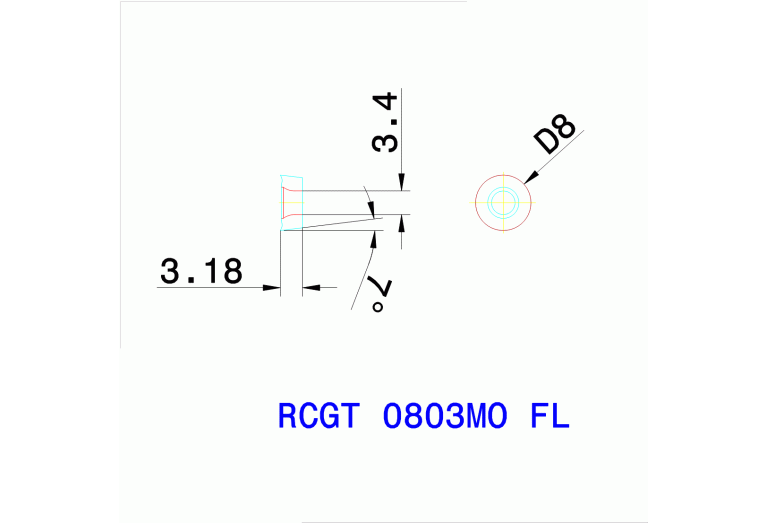

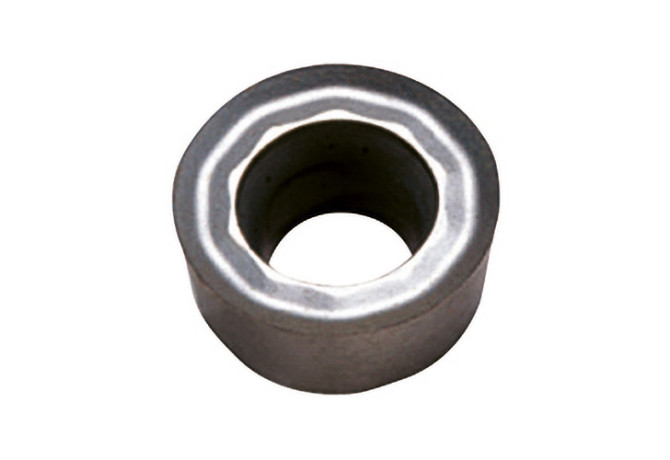

RCGT 0803MO FL K10

Артикул: 5513107

В наличии

В корзину

Описание

Характеристики

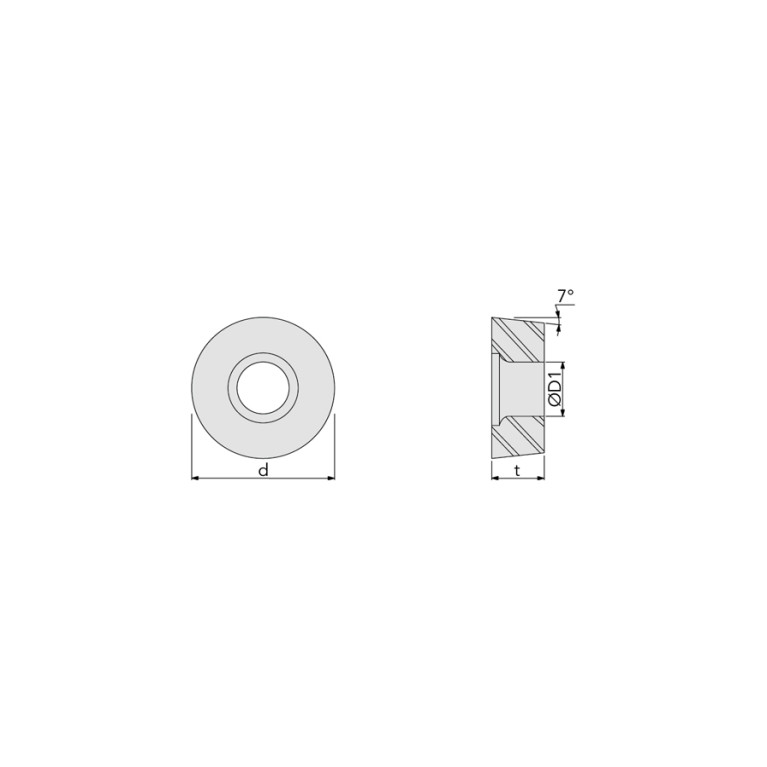

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.4 mm

Delivery state

NL - Discontinued

DIN

RC0803M03N

FamilyProducts

insert, Chipbreaker, positive 7° clearance round inserts for aluminum machining

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

K10

GRDPRIO Standard designation of the grade main application

N05-N15

IC Inscribed circle diameter

8 mm

ID Technical product number

5513107

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0803M03N

M M-dimension

8 mm

Name Identifying order number

RCGT 0803MO FL K10

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCGT0803M0

TCINS Tolerance class insert

Working process

No working processes available
