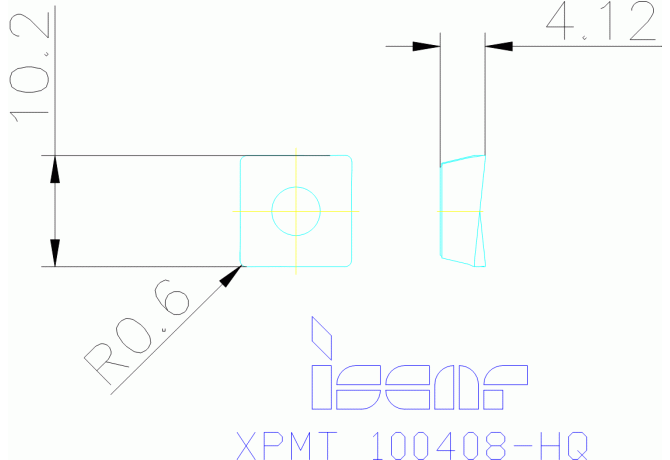

XPMT 100408-HQ IC28

Артикул: 5601222

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

ohne

COMPC Company code

IS - Iscar

DIN

IS-731196824155395

EPSR Insert included angle

90 Degree

FamilyProducts

Square Inserts with 2 Right- or Left-Hand Cutting Edges for General Use

GRDMFG Grade manufacturers designation

IC28

IC Inscribed circle diameter

10.2 mm

ID Technical product number

5601222

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$731196824155395

ISYC Subclass

201-02 - Square insert

L Cutting edge length

10.2 mm

LOC-03 ISO

IS$$731196824155395

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-731196824155395

Materials

Name Identifying order number

XPMT 100408-HQ IC28

RE Corner radius

0.6 mm

S Insert thickness

4.12 mm

Working process

FEC - Square shoulder milling,FPL - Face milling
