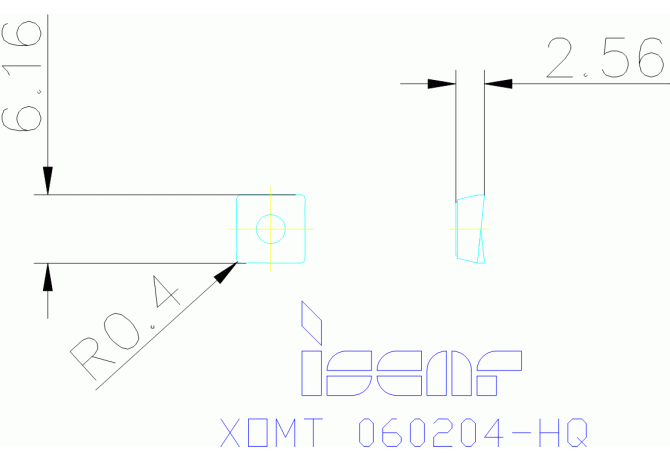

XOMT 060204-HQ IC28

Артикул: 5600906

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

ohne

COMPC Company code

IS - Iscar

DIN

IS-587741341601169

EPSR Insert included angle

90 Degree

FamilyProducts

Square Inserts for Milling, Drilling and Boring with 2 Right- and 2 Left-Hand Cutting Edges for General Use

GRDMFG Grade manufacturers designation

IC28

IC Inscribed circle diameter

6.16 mm

ID Technical product number

5600906

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$587741341601169

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.16 mm

LOC-03 ISO

IS$$587741341601169

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-587741341601169

Name Identifying order number

XOMT 060204-HQ IC28

RE Corner radius

0.4 mm

S Insert thickness

2.56 mm

Working process

No working processes available
