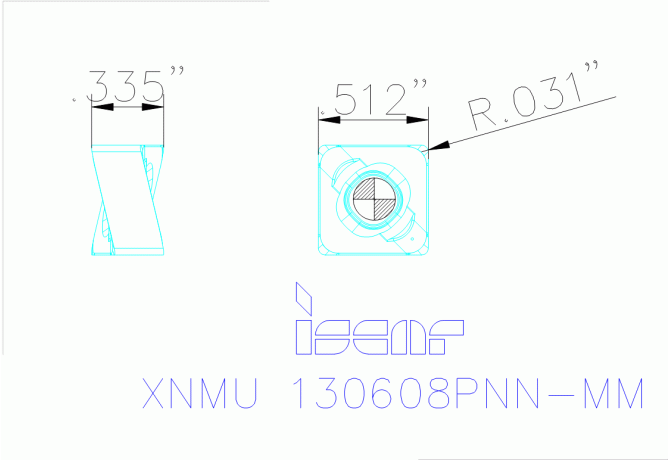

XNMU 130608PNN-MM IC330

Артикул: 5607640

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiCN+TiN

COMPC Company code

IS - Iscar

DIN

IS-241483137015894

EPSR Insert included angle

90 Degree

FamilyProducts

Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges

GRDMFG Grade manufacturers designation

IC330

IC Inscribed circle diameter

13 mm

ID Technical product number

5607640

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$241483137015894

ISYC Subclass

201-02 - Square insert

L Cutting edge length

13 mm

LOC-03 ISO

IS$$241483137015894

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-241483137015894

Name Identifying order number

XNMU 130608PNN-MM IC330

RE Corner radius

0.8 mm

S Insert thickness

8.5 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling

WT Weight of item

0.01 kg
