Главная Каталог продукции Toolunited 16 201-02 - Square insert SWMW13T3AFTR AH120

SWMW13T3AFTR AH120

Артикул: 6846110

В наличии

В корзину

Описание

Характеристики

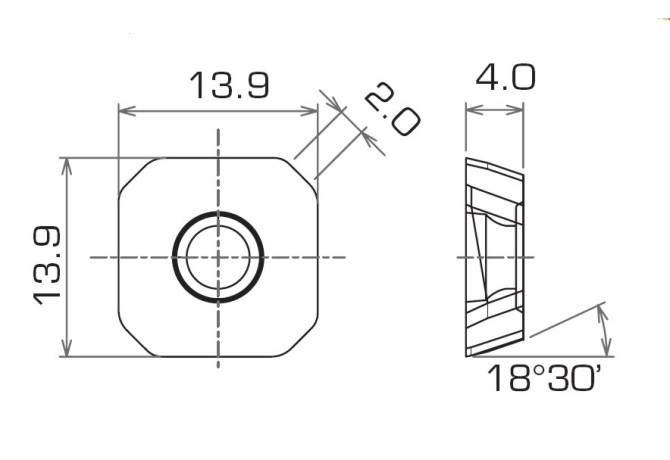

AN Clearance angle major

18.5 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

2 mm

COATN Coating / Покрытие

TiAlN-PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.52 mm

Delivery state valid from

10/26/2012

DIN

SW13T3AF3N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SWMW for milling

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRD3RD Standard designation of the grade 3rd application

HC-K25

GRDMFG Grade manufacturers designation

AH120

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

13.9 mm

ID Technical product number

6846110

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

L Cutting edge length

13.9 mm

LE Cutting edge effective length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SW13T3AF3N

Name Identifying order number

SWMW13T3AFTR AH120

S Insert thickness

4 mm

S1 Insert thickness total

4 mm

STDDES Standard designation

SWMW13T3AFTR

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
