Главная Каталог продукции Toolunited 16 201-02 - Square insert SPMW090304 VP15TF

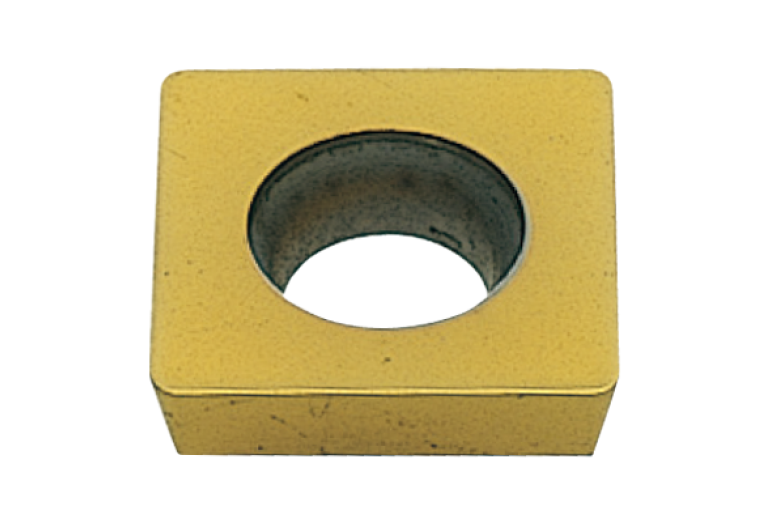

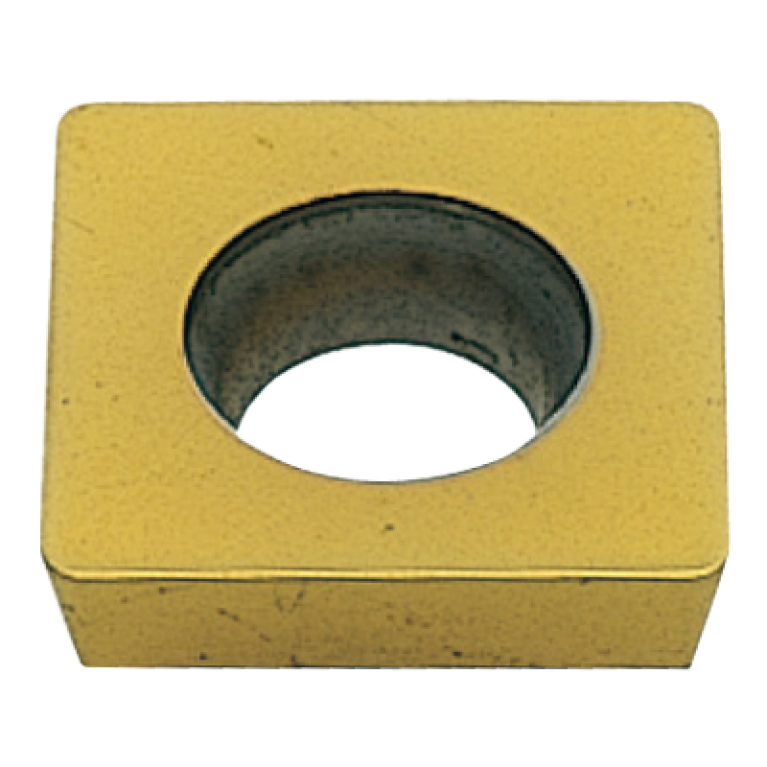

SPMW090304 VP15TF

Артикул: 540875

В наличии

В корзину

Описание

Характеристики

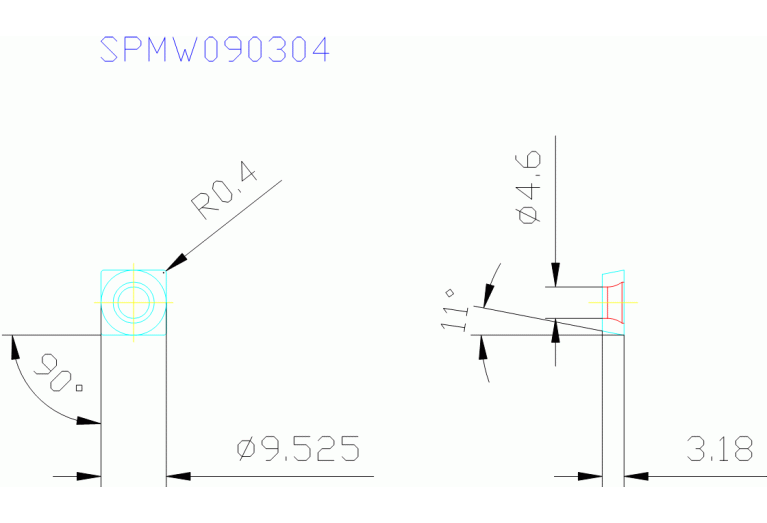

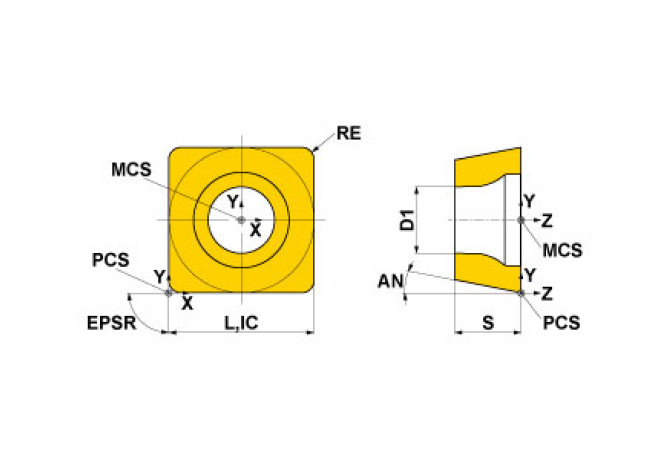

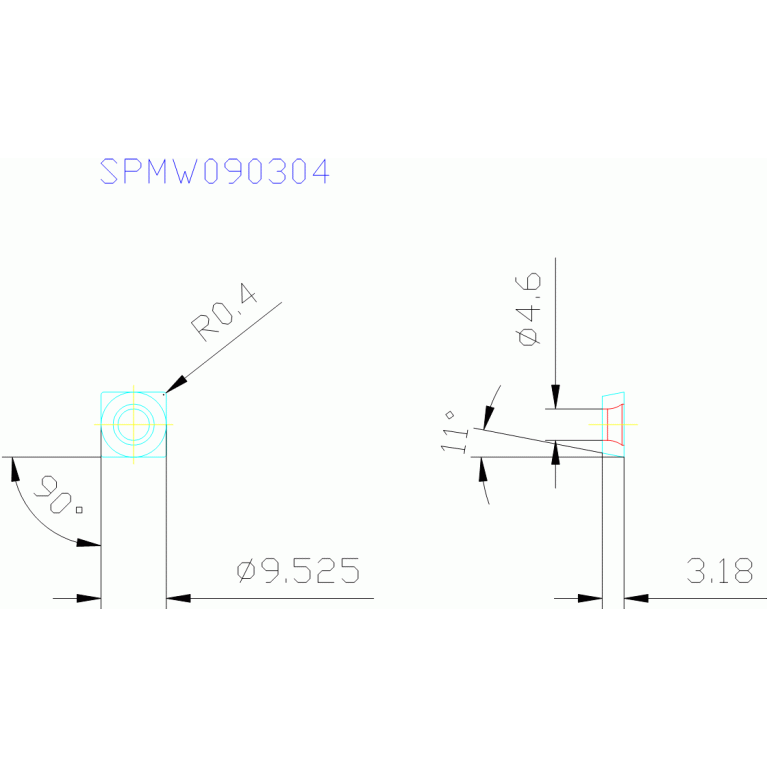

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

(Al,Ti)N

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

4.6 mm

Delivery state valid from

11/30/2009

EPSR Insert included angle

90 Degree

FamilyProducts

TURNING INSERTS (POSITIVE)Insert for Rotating Tools (Positive)

GRDMFG Grade manufacturers designation

VP15TF

IC Inscribed circle diameter

9.525 mm

ID Technical product number

540875

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SP0903043NA$$04

ISYC Subclass

201-02 - Square insert

LOC-03 ISO

ISO$SP0903043NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

SPMW090304 VP15TF

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

STDDESAnsi Standard designation ANSI

SPMW321

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
