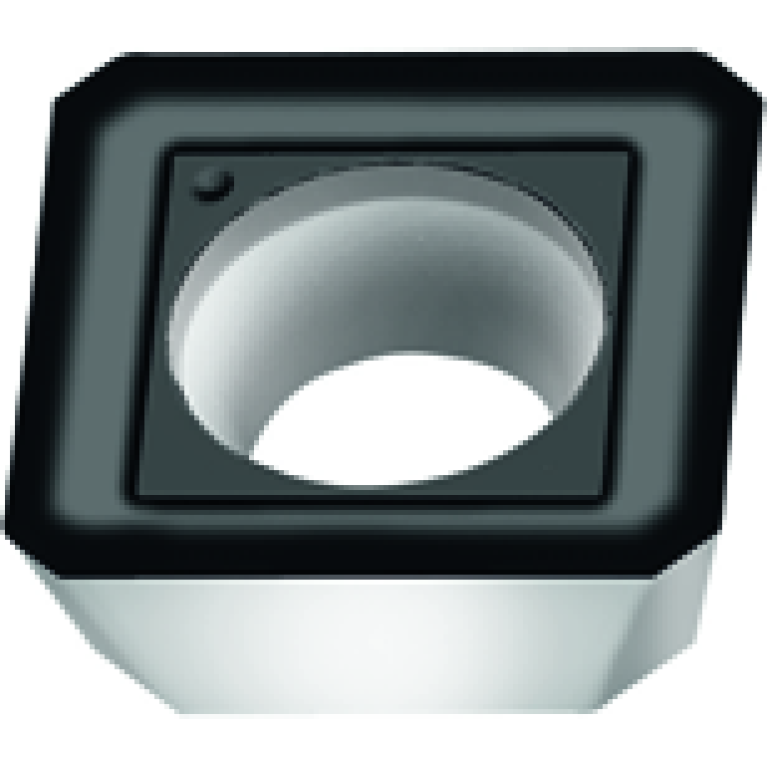

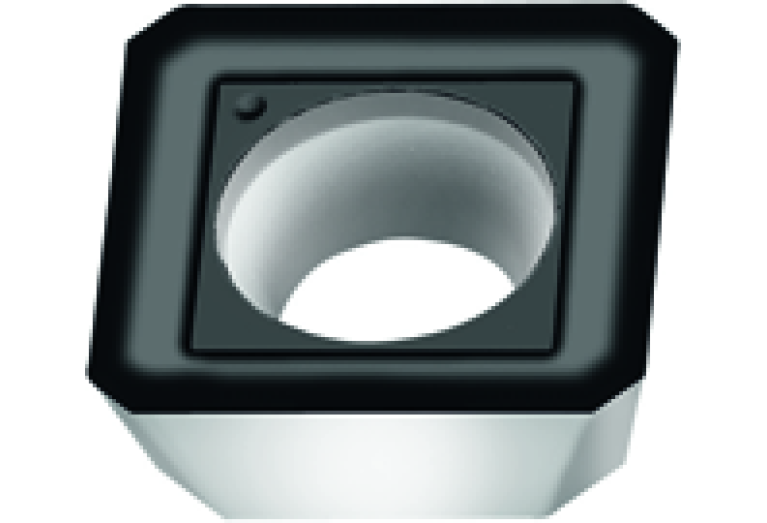

SPMT1204AEN WSM35

Артикул: 5537910

В наличии

В корзину

Описание

Характеристики

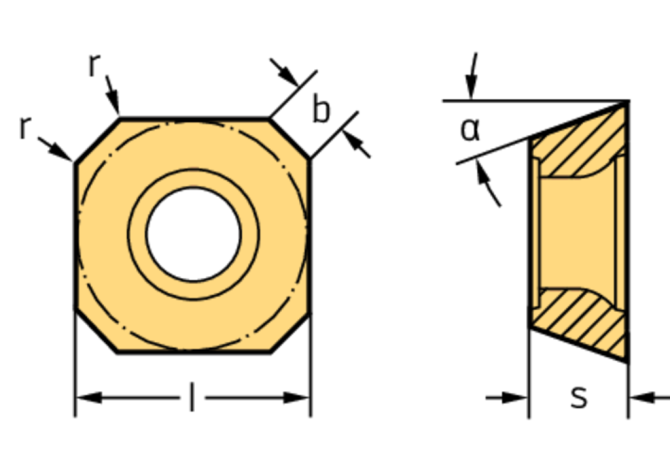

AN Clearance angle major

11 Degree

BS Wiper edge length

1.4 mm

CBMD Chip breaker manufacturers designation

A57

COMPC Company code

W - Walter

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-SP1204AE

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SPMT

GRDMFG Grade manufacturers designation

WSM35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5537910

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$SP1204$$3NBAE$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

WR$$SP1204$$3NBAE$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-SP1204AE

Name Identifying order number

SPMT1204AEN WSM35

RE Corner radius

0.5 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.006 kg
