SPMT120404-PS AT530

Артикул: SPMT120404-PS AT530

В наличии

В корзину

Описание

Характеристики

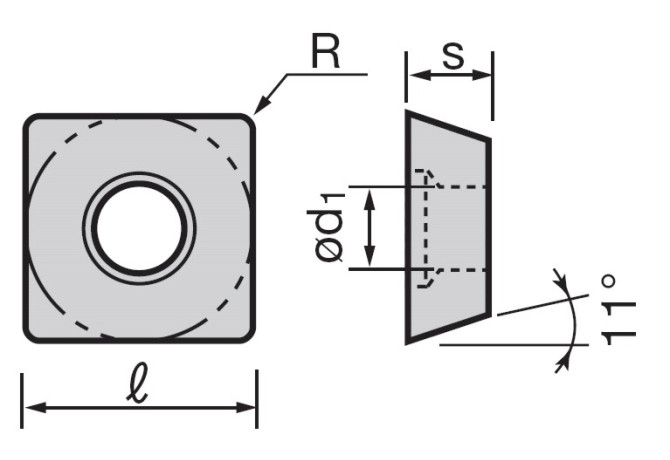

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

9/1/2007

DIN

SP1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SPMT, PS breaker

GRDMFG Grade manufacturers designation

AT530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204 3N

Name Identifying order number

SPMT120404-PS AT530

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPMT120404

STDDESAnsi Standard designation ANSI

SPMT431

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
