SPMT120308 NX33

Артикул: SPMT120308 NX33

В наличии

В корзину

Описание

Характеристики

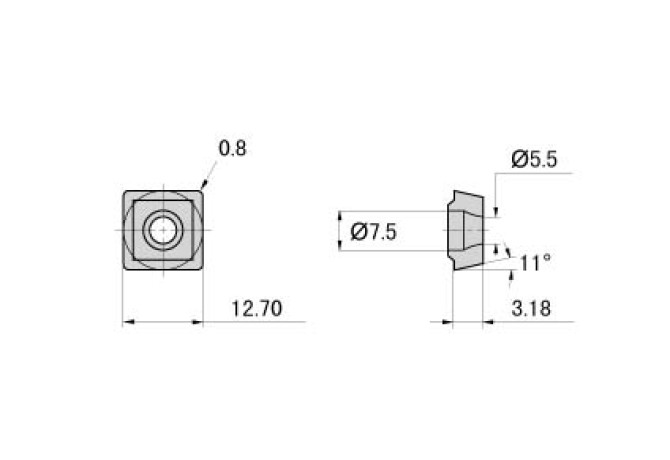

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

SP1203083N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING, CERMET

GAN Insert rake angle

18 Degree

GB Face land angle

0 Degree

GRDMFG Grade manufacturers designation

NX33

GRDPRIO Standard designation of the grade main application

CT-P01

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203083N

Materials

Name Identifying order number

SPMT120308 NX33

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMT120308

STDDESAnsi Standard designation ANSI

SPMT422

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
