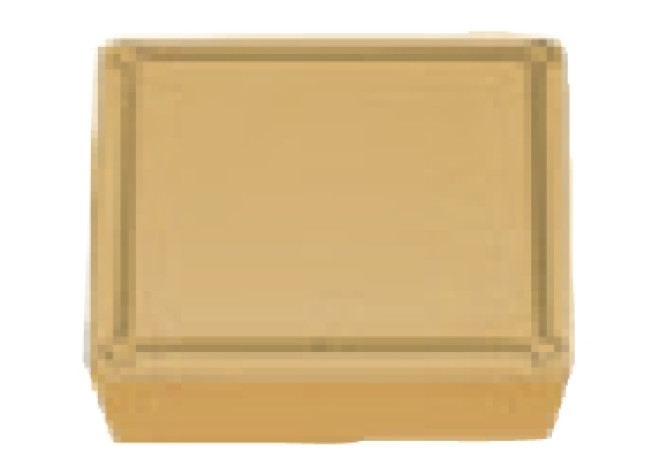

SPMR120308 US735

Артикул: SPMR120308 US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SP1203081N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SPMR

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

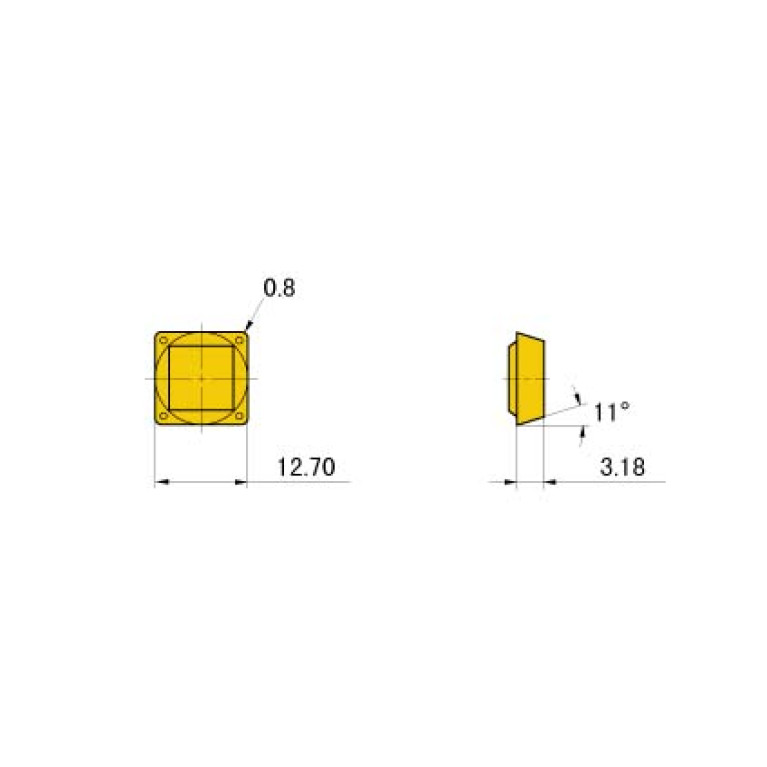

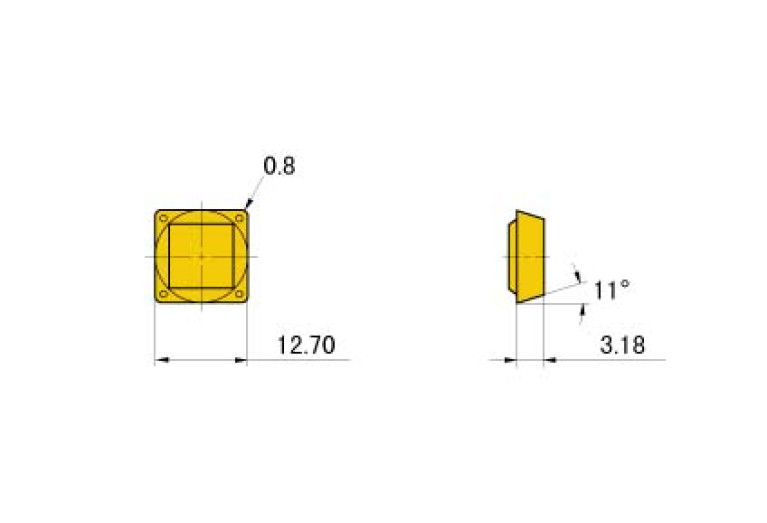

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SPMR120308 US735

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203081N

Materials

P,M,S

Name Identifying order number

SPMR120308 US735

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMR120308

STDDESAnsi Standard designation ANSI

SPMR422

TCINS Tolerance class insert

Working process

DDI - Internal turning
