Главная Каталог продукции Toolunited 16 201-02 - Square insert SPMR120304 WP35CT

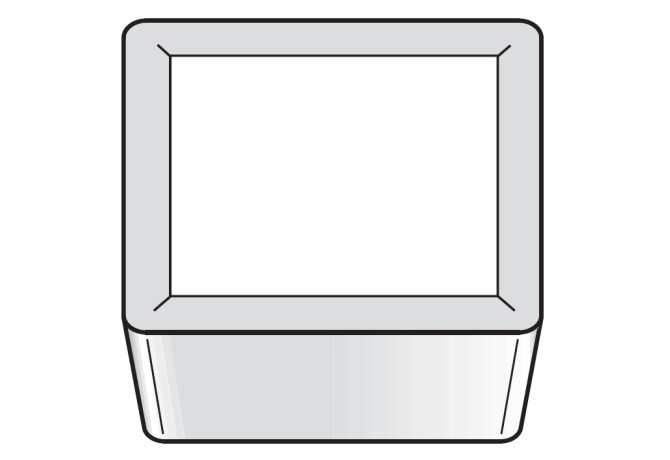

SPMR120304 WP35CT

Артикул: 4170651

В наличии

В корзину

Описание

Характеристики

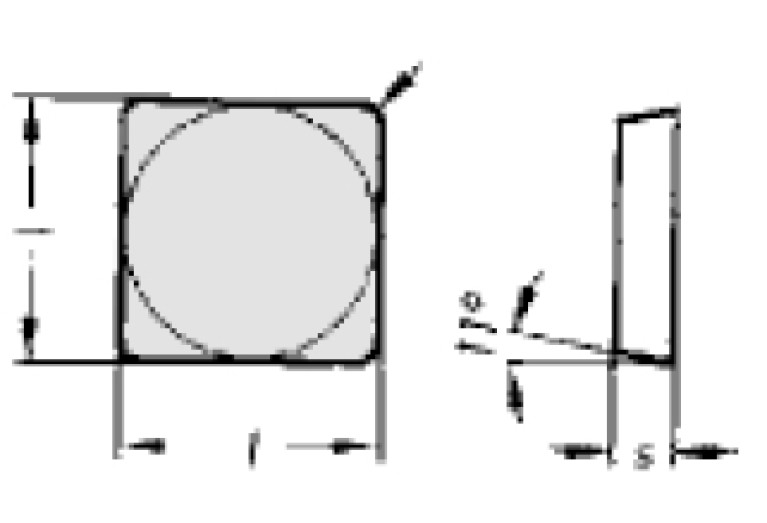

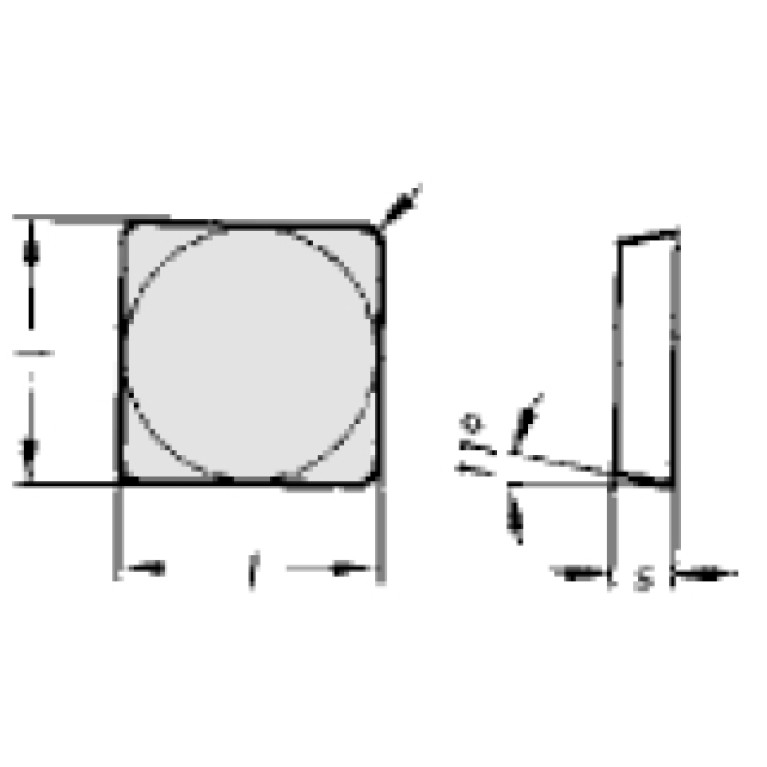

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2012

DIN

SP1203041N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, positive, SPMR

GRDMFG Grade manufacturers designation

WP35CT

IC Inscribed circle diameter

12.7 mm

ID Technical product number

4170651

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203041N

Materials

P,M

Name Identifying order number

SPMR120304 WP35CT

NameAnsi Identifying order number inch alternative

SPMR421 WP35CT

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMR120304

STDDESAnsi Standard designation ANSI

SPMR421

TCINS Tolerance class insert

Working process

No working processes available
