Главная Каталог продукции Toolunited 16 201-02 - Square insert SPMR090308 WK20CT

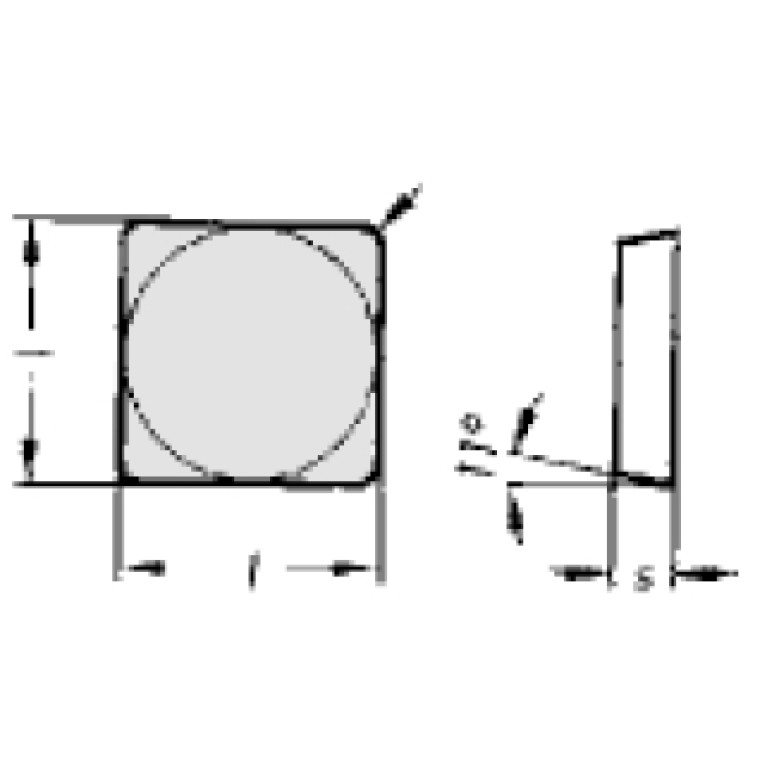

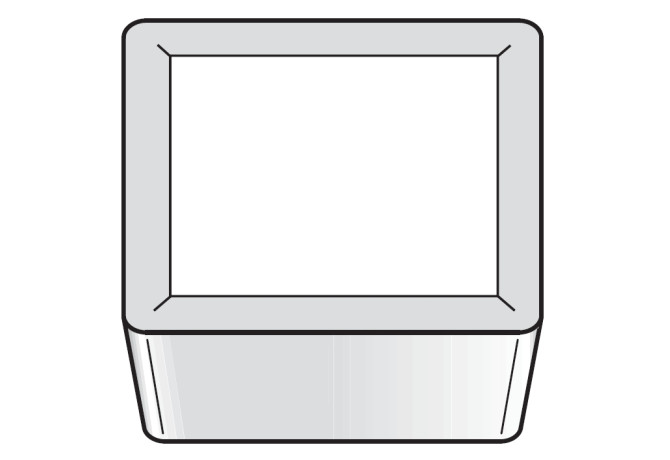

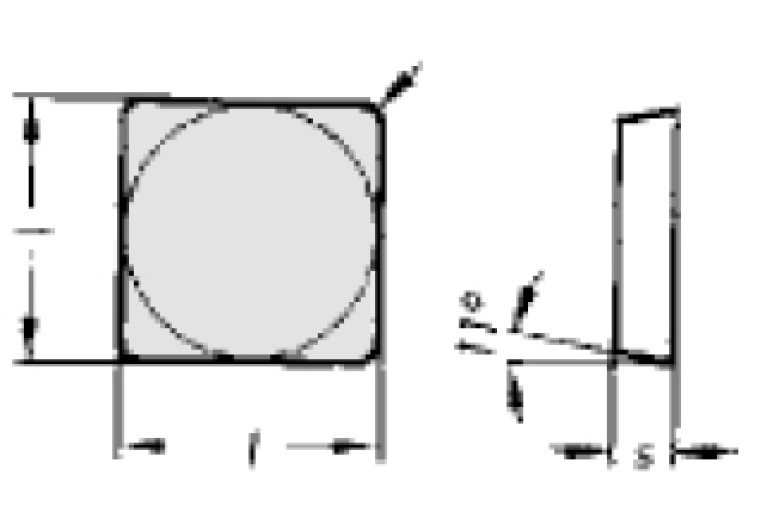

SPMR090308 WK20CT

Артикул: 4170946

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2012

DIN

SP0903081N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, positive, SPMR

GRDMFG Grade manufacturers designation

WK20CT

IC Inscribed circle diameter

9.53 mm

ID Technical product number

4170946

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.53 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903081N

Materials

Name Identifying order number

SPMR090308 WK20CT

NameAnsi Identifying order number inch alternative

SPMR322 WK20CT

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMR090308

STDDESAnsi Standard designation ANSI

SPMR322

TCINS Tolerance class insert

Working process

No working processes available
