Главная Каталог продукции Toolunited 16 201-02 - Square insert SPMR090308-23 T9015

SPMR090308-23 T9015

Артикул: SPMR090308-23 T9015

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

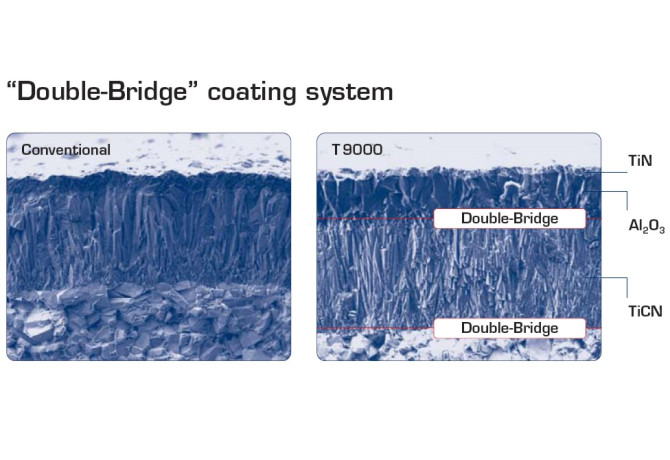

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

SP0903 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Positive turning inserts coated carbide

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRDMFG Grade manufacturers designation

T9015

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903 1N

Materials

P,M

Name Identifying order number

SPMR090308-23 T9015

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMR090308

STDDESAnsi Standard designation ANSI

SPMR322

TCINS Tolerance class insert

Working process

DDA - External turning
