SPMN120304 NX99

Артикул: SPMN120304 NX99

В наличии

В корзину

Описание

Характеристики

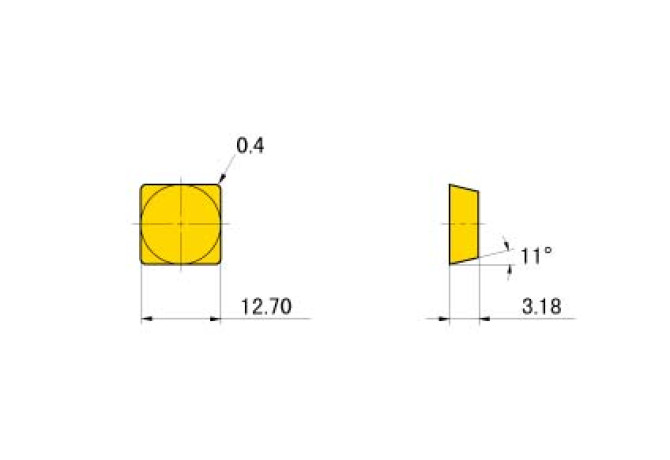

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SP1203041N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING, CERMET

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

CT-P20

GRDMFG Grade manufacturers designation

NX99

GRDPRIO Standard designation of the grade main application

CT-P10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203041N

Name Identifying order number

SPMN120304 NX99

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMN120304

STDDESAnsi Standard designation ANSI

SPMN421

TCINS Tolerance class insert

Working process

DDI - Internal turning,F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
