Главная Каталог продукции Toolunited 16 201-02 - Square insert SPMB1204APT F620

SPMB1204APT F620

Артикул: SPMB1204APT F620

В наличии

В корзину

Описание

Характеристики

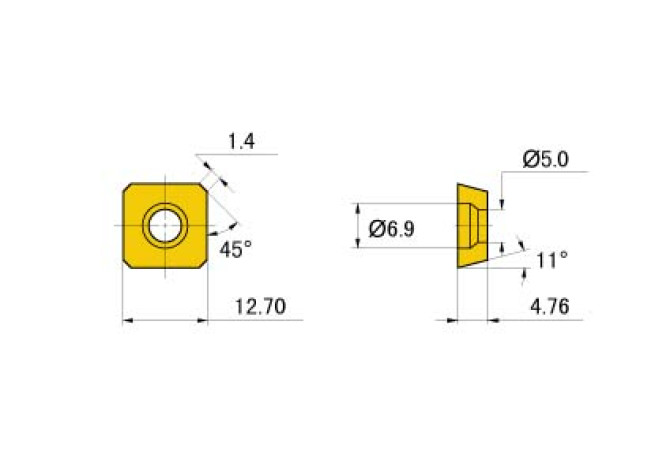

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

11 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5 mm

Delivery state valid from

4/1/2022

DIN

SP1204AP4N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, MILLING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

F620

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SPMB1204APT F620

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204AP4N

Materials

P,M

Name Identifying order number

SPMB1204APT F620

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPMB1204APT

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

0.08 kg
