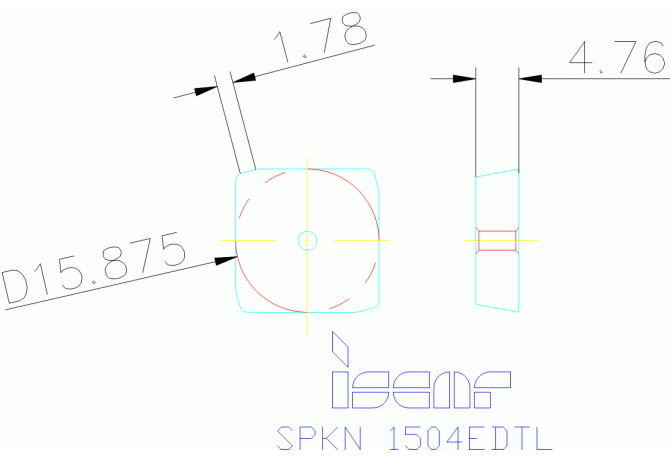

SPKN 1504EDTL IC50M

Артикул: 5600249

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.4 mm

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

ohne

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/2/2018

EPSR Insert included angle

90 Degree

FamilyProducts

Flat Rake Milling Inserts for General Use

GRD2ND Standard designation of the grade 2nd application

HW-M40

GRDMFG Grade manufacturers designation

IC50M

GRDPRIO Standard designation of the grade main application

HW-P30

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5600249

IFS Insert mounting style code

1 - Without bore

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

15.88 mm

LE Cutting edge effective length

11.5 mm

Name Identifying order number

SPKN 1504EDTL IC50M

NOI Insert index count

S Insert thickness

4.76 mm

STDDES Standard designation

SPKN1504EDTL

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available

WT Weight of item

0.01 kg
