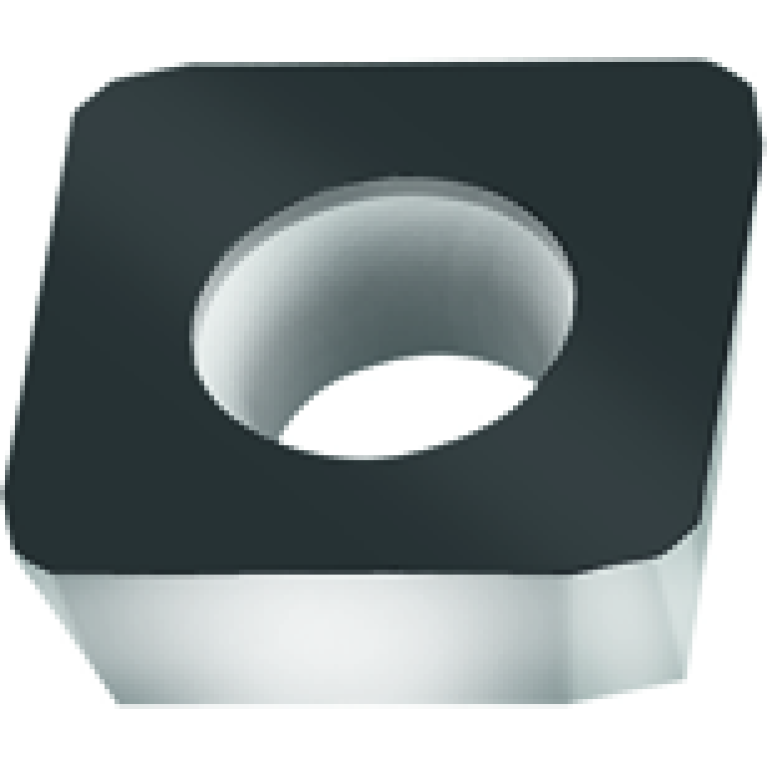

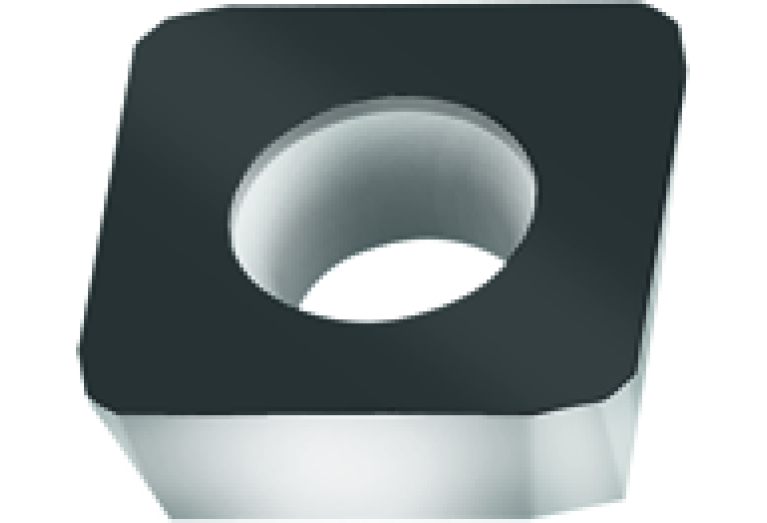

SPJW1504EDR WKP25

Артикул: 5091956

В наличии

В корзину

Описание

Характеристики

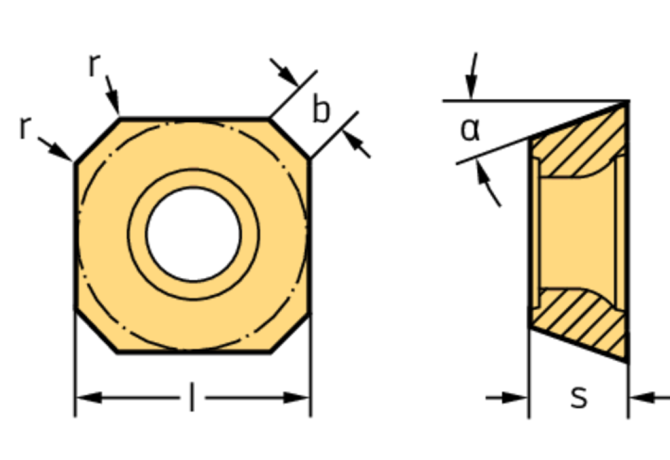

AN Clearance angle major

11 Degree

BS Wiper edge length

1.5 mm

CBMD Chip breaker manufacturers designation

A57

COMPC Company code

W - Walter

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-MU150400

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SPJW

GRDMFG Grade manufacturers designation

WKP25

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5091956

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$MU1504$$3RB$$$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.88 mm

LOC-03 ISO

WR$$MU1504$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-MU150400

Name Identifying order number

SPJW1504EDR WKP25

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.014 kg
