Главная Каталог продукции Toolunited 16 201-02 - Square insert SPHT060304F01L-2R-HP615

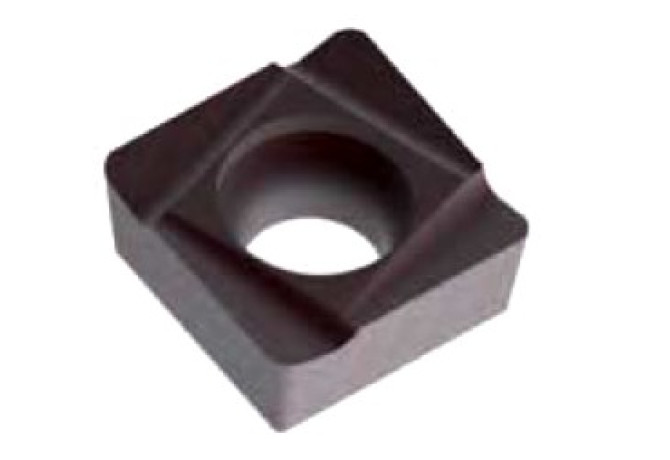

SPHT060304F01L-2R-HP615

Артикул: SPHT060304F01L-2R-HP615

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

TiB2

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

SP0603 3L

EPSR Insert included angle

90 Degree

FamilyProducts

Radial indexable insert SPHT, 4 cutting edges

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HP615

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.35 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0603 3L

Materials

Name Identifying order number

SPHT060304F01L-2R-HP615

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPHT060304L

STDDESAnsi Standard designation ANSI

SPHT221L

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
