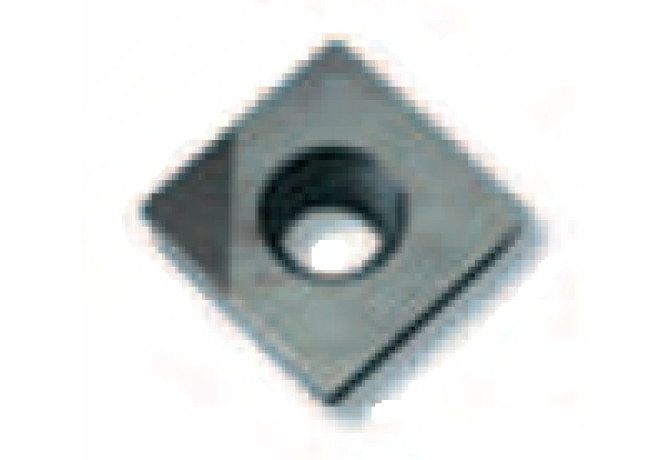

SPGW090312 BN600

Артикул: SPGW090312 BN600

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

7/28/2012

DIN

SP0903 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Sumitomo CBN indexable insert

GRDMFG Grade manufacturers designation

BN600

IC Inscribed circle diameter

9.525 mm

ID Technical product number

SPGW090312 BN600

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LE Cutting edge effective length

0.508 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903 3N

M M-dimension

0.025 mm

Materials

S,H

Name Identifying order number

SPGW090312 BN600

RE Corner radius

1.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGW090312

STDDESAnsi Standard designation ANSI

SPGA323

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
