Главная Каталог продукции Toolunited 16 201-02 - Square insert SPGR090304R HTi10

SPGR090304R HTi10

Артикул: SPGR090304R HTi10

В наличии

В корзину

Описание

Характеристики

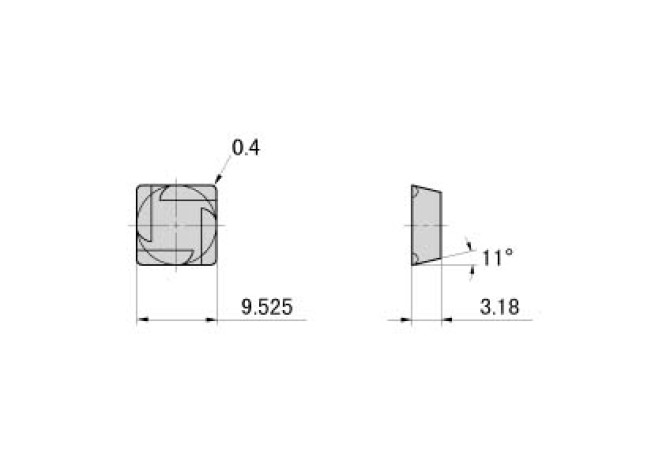

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SP0903041R

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING, UNCOATED

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903041R

Materials

K,N,S,H

Name Identifying order number

SPGR090304R HTi10

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGR090304R

STDDESAnsi Standard designation ANSI

SPGR321R

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling,SPL - Spot facing
