Главная Каталог продукции Toolunited 16 201-02 - Square insert SPGN150412 NC3030

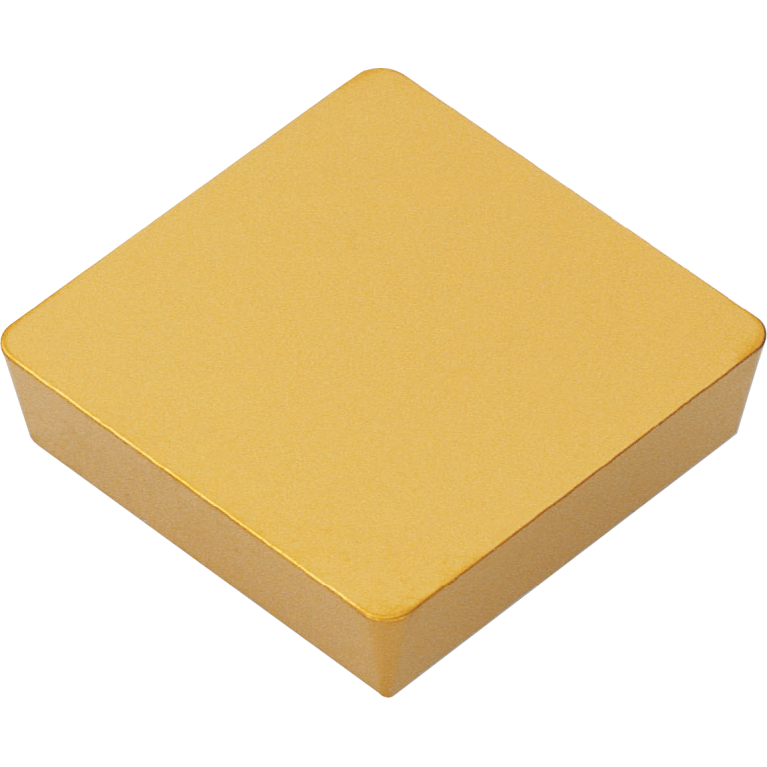

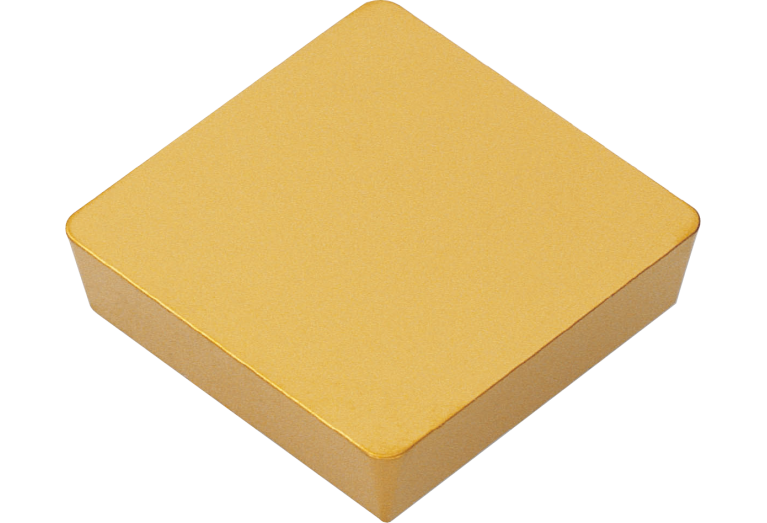

SPGN150412 NC3030

Артикул: 1-02-027796

В наличии

В корзину

Описание

Характеристики

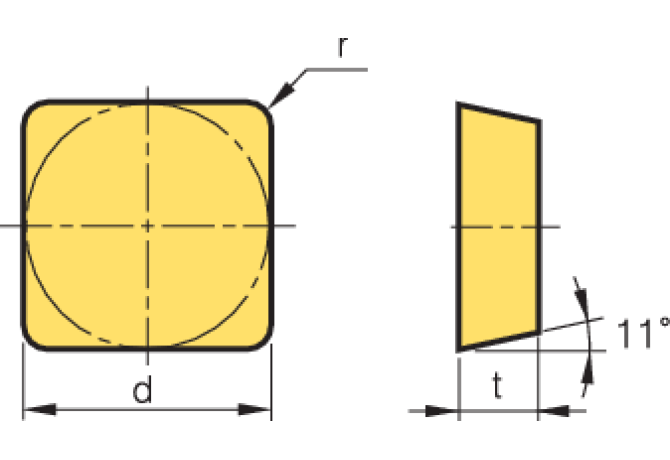

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SP1504 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

NC3030

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

15.875 mm

ID Technical product number

1-02-027796

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1504 1N

Name Identifying order number

SPGN150412 NC3030

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPGN150412

STDDESAnsi Standard designation ANSI

SPGN533

TCINS Tolerance class insert

Working process

No working processes available
