Главная Каталог продукции Toolunited 16 201-02 - Square insert SPGN120312 KB420

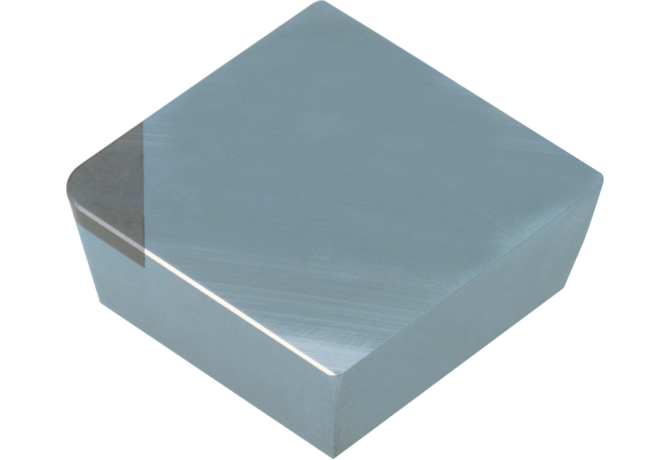

SPGN120312 KB420

Артикул: 6-01-028884

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SP1203 1N

EPSR Insert included angle

90 Degree

FamilyProducts

CBN Regrindable (Positive)

GRDMFG Grade manufacturers designation

KB420

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6-01-028884

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

4.65 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203 1N

Name Identifying order number

SPGN120312 KB420

RE Corner radius

1.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGN120312

STDDESAnsi Standard designation ANSI

SPGN423

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0068 kg
