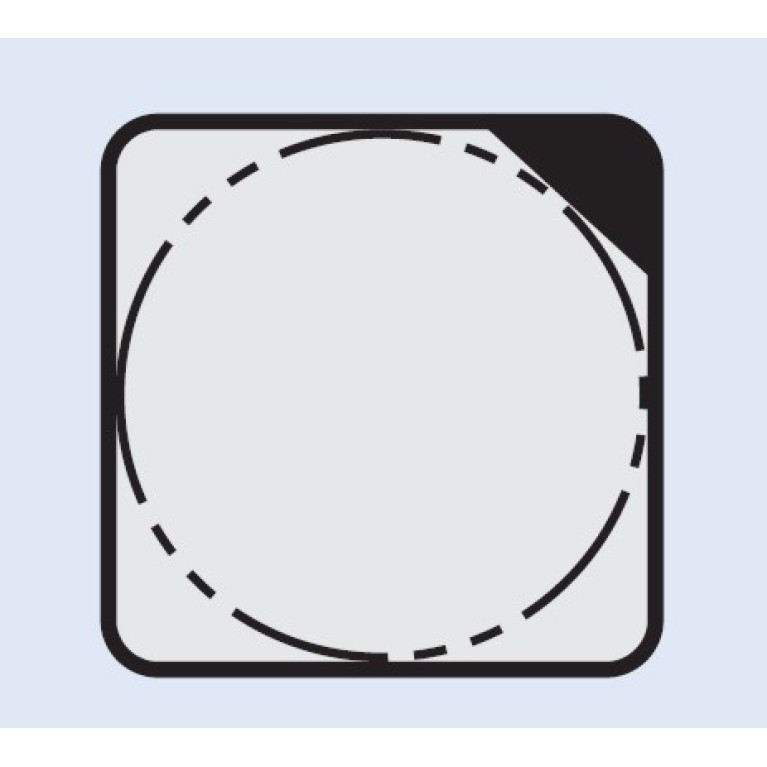

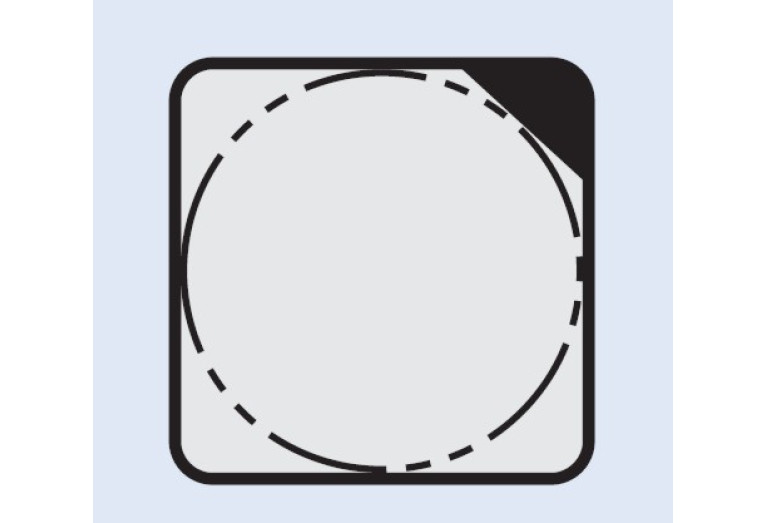

SPGN120308-QBN BX360

Артикул: SPGN120308-QBN BX360

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

QBN

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

SP1203 1N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert, large PCBN inlay, negative

GRDMFG Grade manufacturers designation

BX360

GRDPRIO Standard designation of the grade main application

BN-P01

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203 1N

Name Identifying order number

SPGN120308-QBN BX360

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGN120308

STDDESAnsi Standard designation ANSI

SPGN422

TCINS Tolerance class insert

Working process

DDA - External turning
