Главная Каталог продукции Toolunited 16 201-02 - Square insert SPGN090308 PC5300

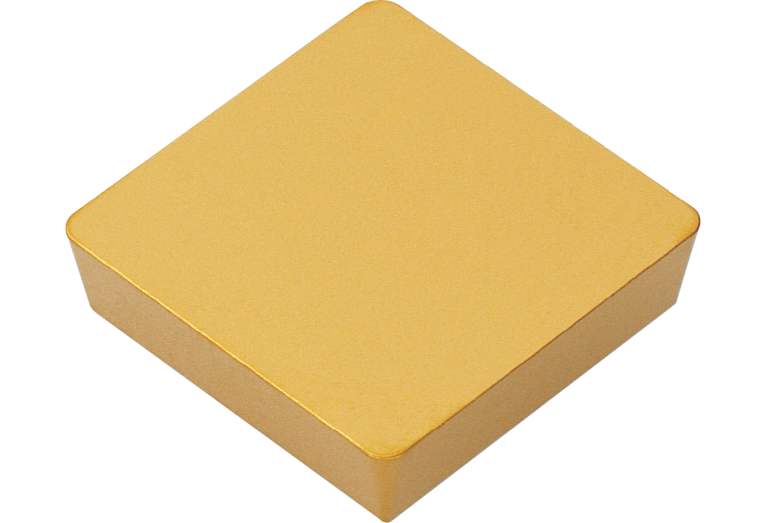

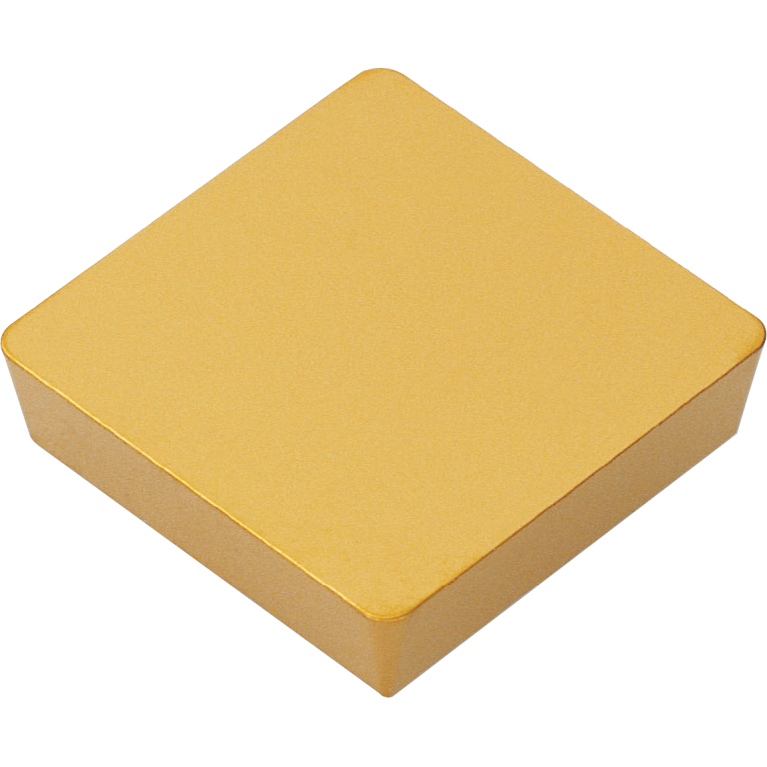

SPGN090308 PC5300

Артикул: 1-02-042107

В наличии

В корзину

Описание

Характеристики

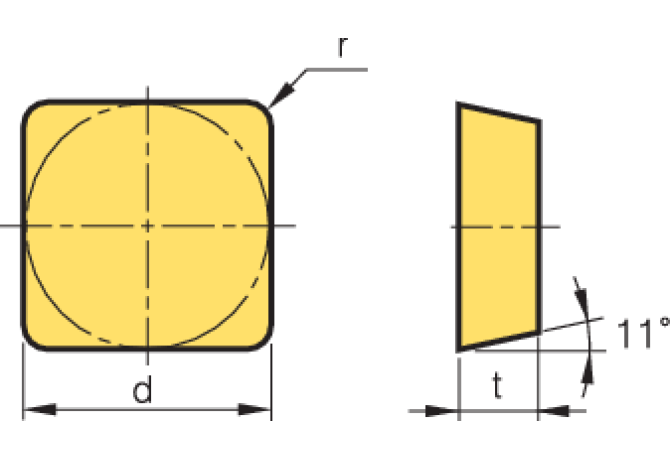

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SP0903 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

PC5300

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1-02-042107

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903 1N

Name Identifying order number

SPGN090308 PC5300

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGN090308

STDDESAnsi Standard designation ANSI

SPGN322

TCINS Tolerance class insert

Working process

No working processes available
