SPER1203EEER-JS F5010

Артикул: SPER1203EEER-JS F5010

В наличии

В корзину

Описание

Характеристики

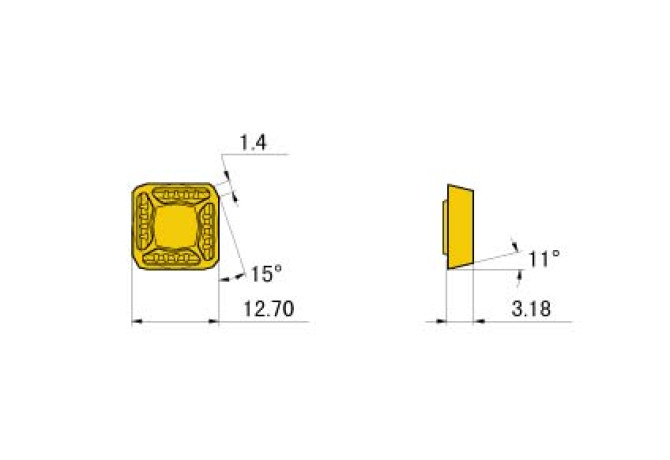

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SP1203EE1R

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, MILLING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

F5010

GRDPRIO Standard designation of the grade main application

HC-K01

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203EE1R

Materials

Name Identifying order number

SPER1203EEER-JS F5010

NameAnsi Identifying order number inch alternative

SPER42EEER-JS F5010

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPER1203EEER

STDDESAnsi Standard designation ANSI

SPER42EEER

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
