Главная Каталог продукции Toolunited 16 201-02 - Square insert SPEN120416-WC G10

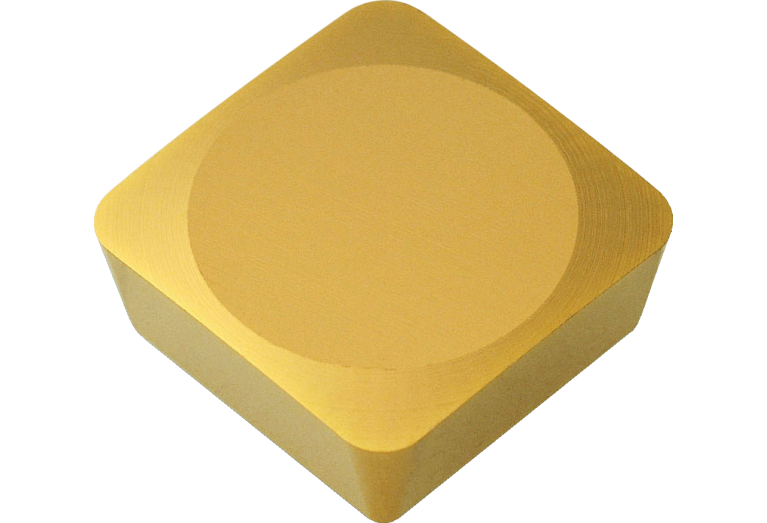

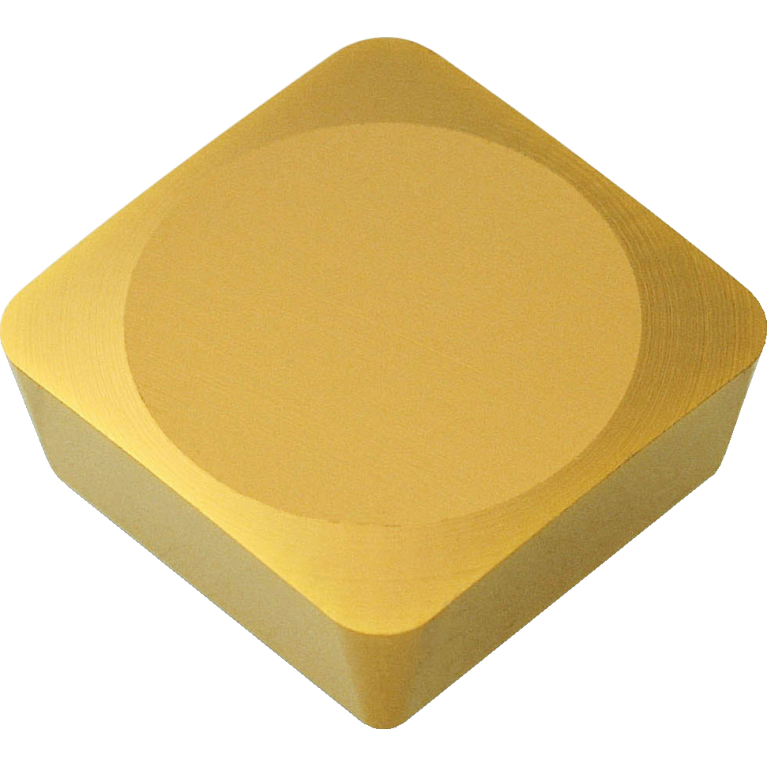

SPEN120416-WC G10

Артикул: 1-03-010530

В наличии

В корзину

Описание

Характеристики

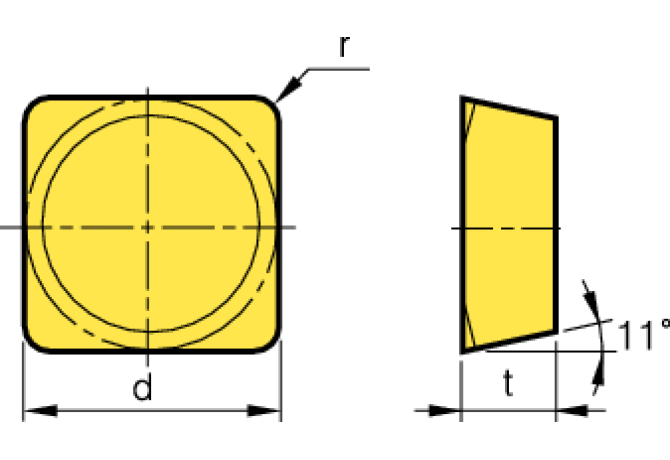

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SP1204 1N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

G10

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-010530

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204 1N

Name Identifying order number

SPEN120416-WC G10

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPEN120416

STDDESAnsi Standard designation ANSI

SPEN434

TCINS Tolerance class insert

Working process

F - Milling
