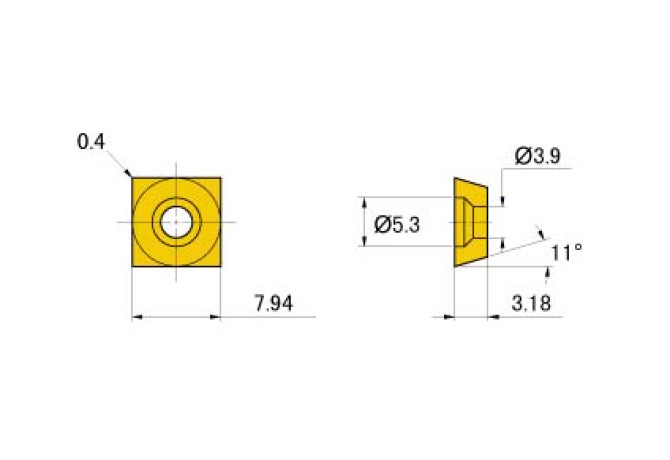

SPEB070304 UP20M

Артикул: SPEB070304 UP20M

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.9 mm

Delivery state valid from

4/1/2022

DIN

MI-SPEB070304

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, MILLING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M20-M30

GRDMFG Grade manufacturers designation

UP20M

GRDPRIO Standard designation of the grade main application

HC-P20-P30

IC Inscribed circle diameter

7.94 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7.94 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-SPEB070304

Materials

Name Identifying order number

SPEB070304 UP20M

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPEB070304

STDDESAnsi Standard designation ANSI

SPEB2.521

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
