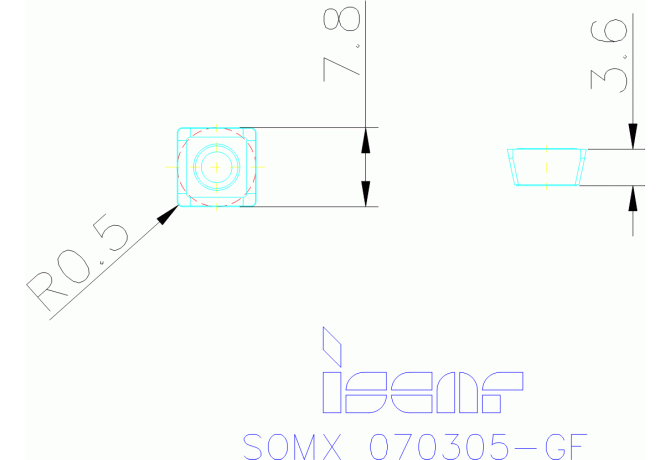

SOMX 070305-GF IC908

Артикул: 5506342

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-451540382169312

FamilyProducts

Inserts with a GF Chipformer for Soft Materials Used on DR Drills

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

7.7 mm

ID Technical product number

5506342

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$451540382169312

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7.7 mm

LOC-03 ISO

IS$$451540382169312

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-451540382169312

Name Identifying order number

SOMX 070305-GF IC908

RE Corner radius

0.5 mm

S Insert thickness

3.6 mm

Working process

No working processes available
