SOMX 060304-DT IC808

Артикул: 5507880

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-451905600758787

FamilyProducts

Inserts for DR Drills with a DT General Use Chipformer

GRDMFG Grade manufacturers designation

IC808

IC Inscribed circle diameter

6.2 mm

ID Technical product number

5507880

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$451905600758787

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.2 mm

LOC-03 ISO

IS$$451905600758787

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-451905600758787

Name Identifying order number

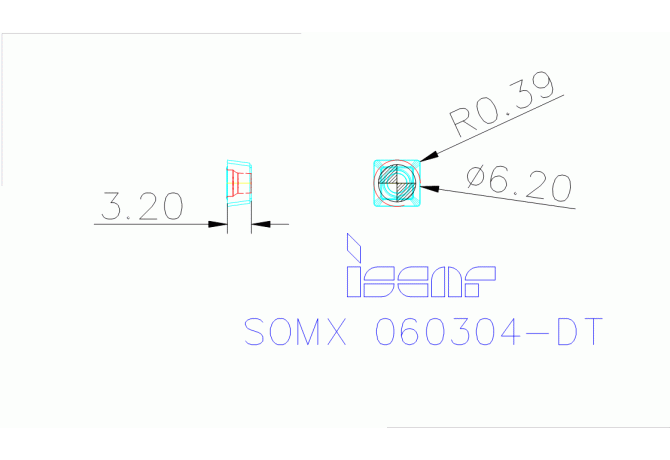

SOMX 060304-DT IC808

RE Corner radius

0.4 mm

S Insert thickness

3.2 mm

Working process

No working processes available
